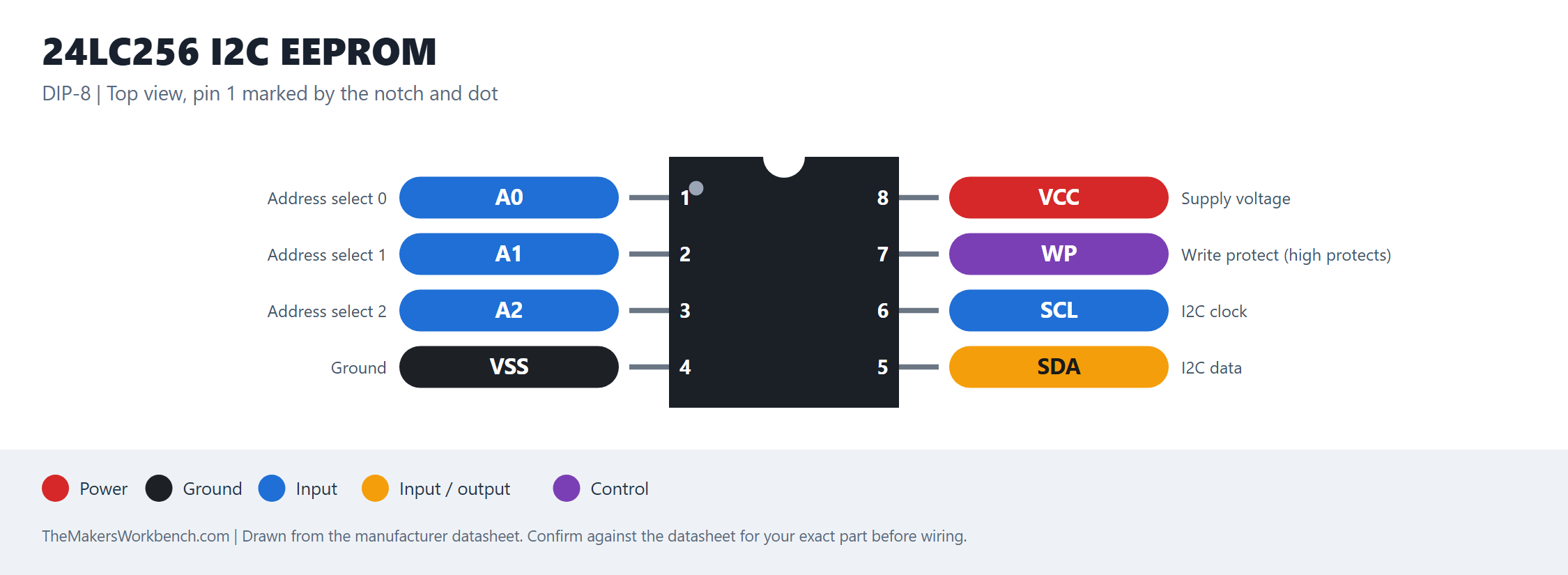

24LC256 I2C EEPROM pinout
← All pinouts · Memory
Click the image to open it full size.
Notes
The I2C address is 0x50 plus the A2 A1 A0 pin settings. The 24C32 and other 24Cxx parts share this pinout.
