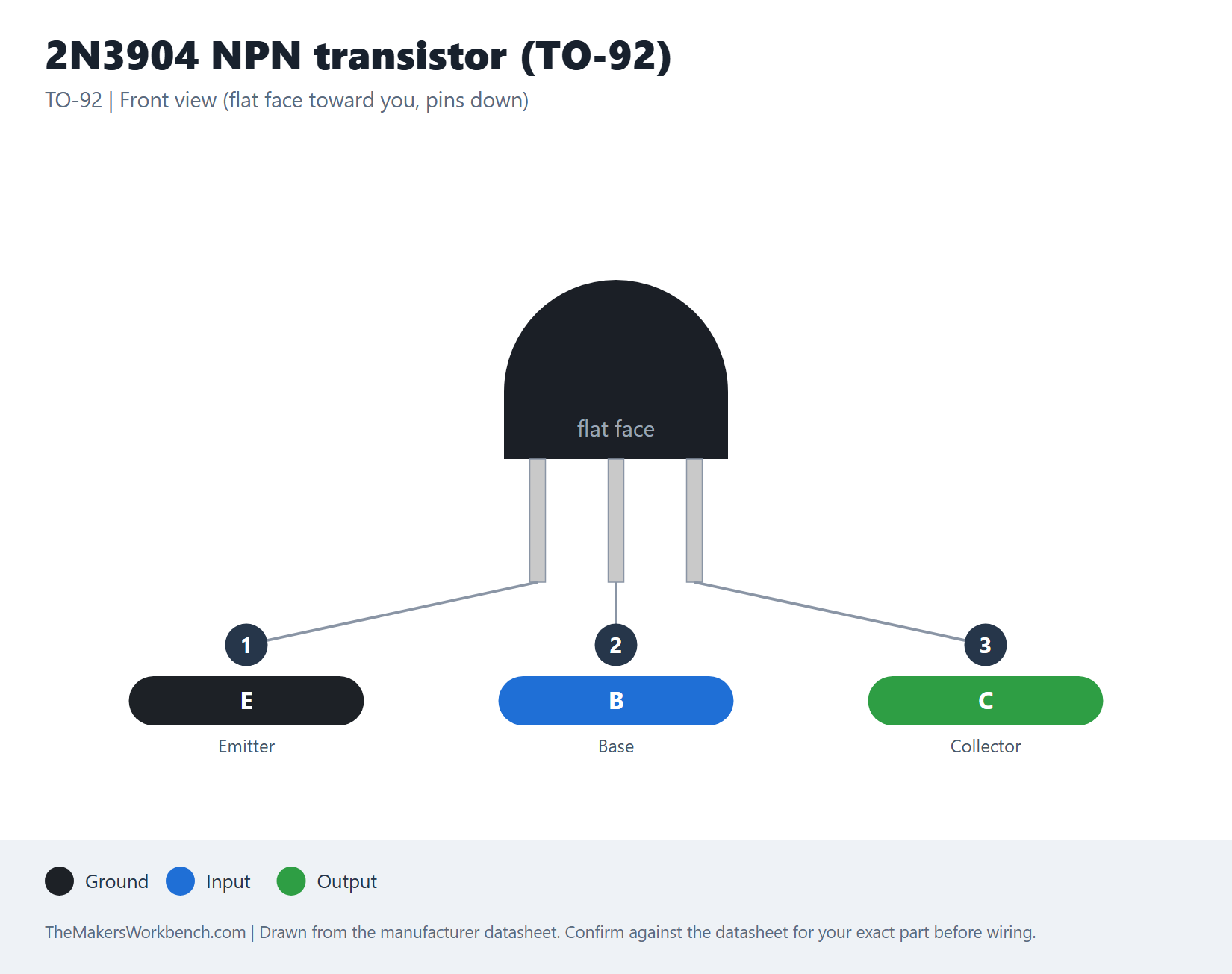

2N3904 NPN transistor (TO-92) pinout
← All pinouts · Transistors and MOSFETs
Click the image to open it full size.
Notes
From the flat face the order is Emitter, Base, Collector. This is the reverse of the BC547. The 2N3906 PNP has the same order.
