2N3906 PNP transistor (TO-92) pinout
← All pinouts · Transistors and MOSFETs
Click the image to open it full size.
Notes

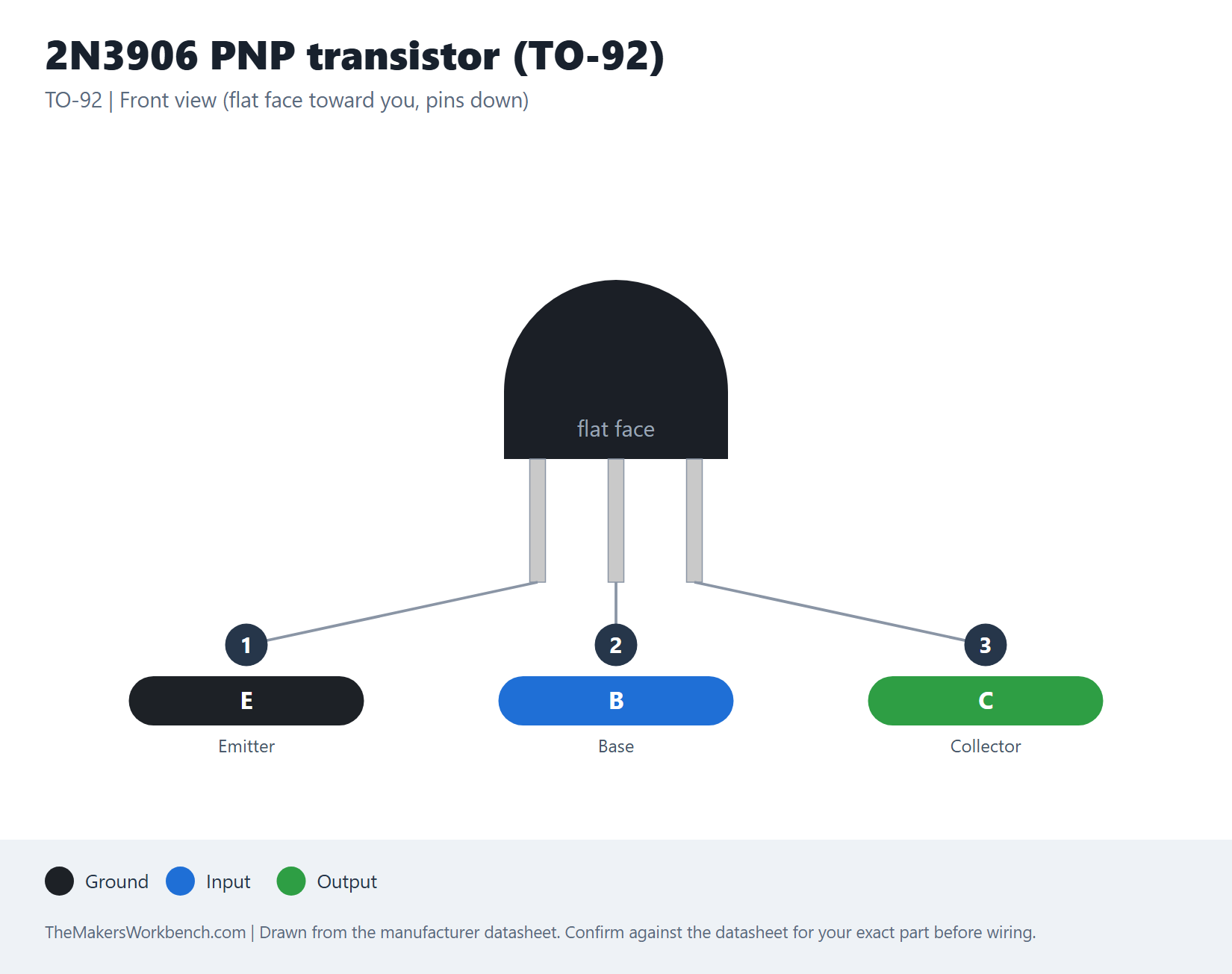

From the flat face the order is Emitter, Base, Collector, the same as the 2N3904.
2N3906 PNP transistor (TO-92)
