2N7000 N-channel MOSFET (TO-92)

2N7000 N-channel MOSFET (TO-92) pinout

← All pinouts · Transistors and MOSFETs

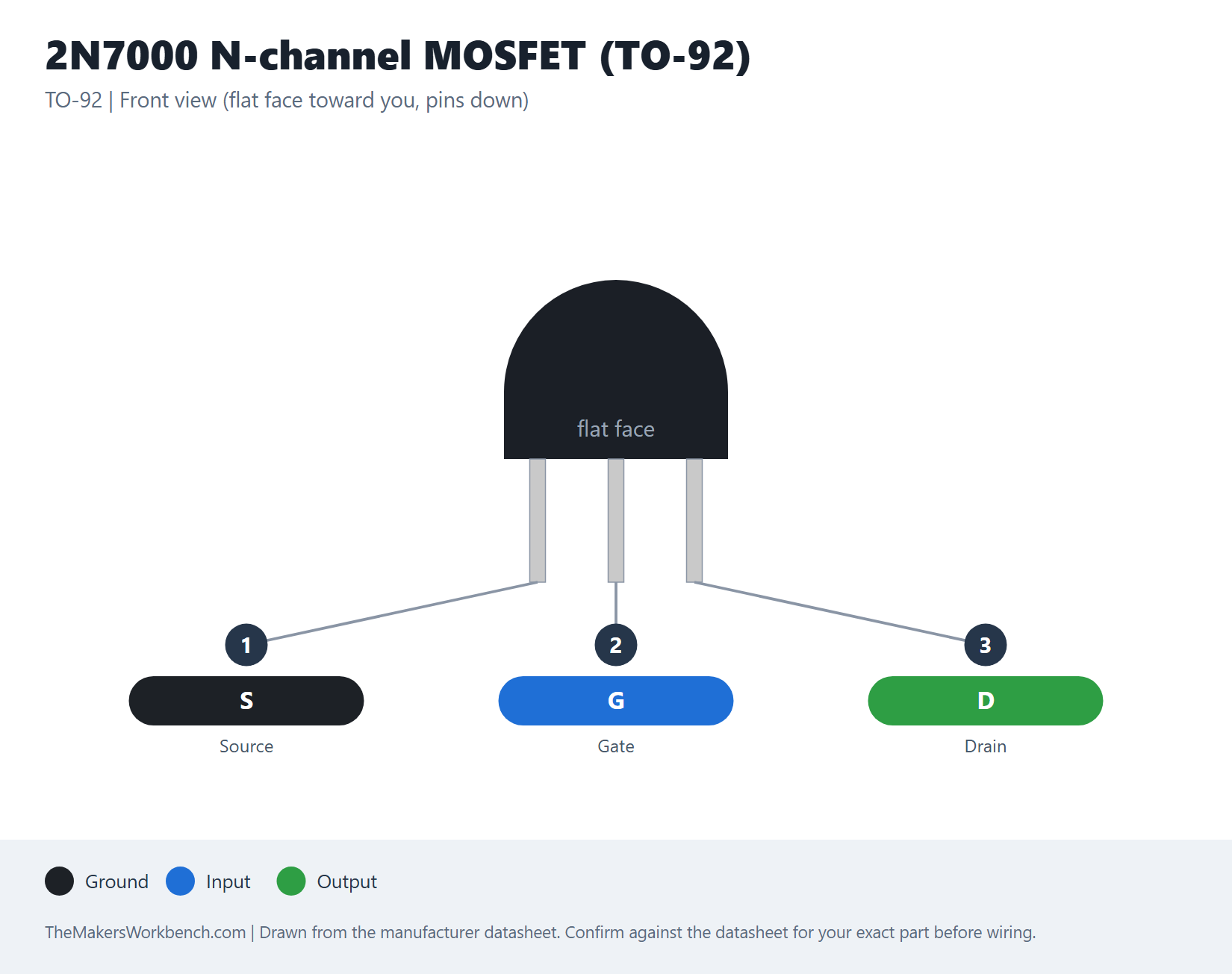

2N7000 N-channel MOSFET (TO-92) pinout diagram

Click the image to open it full size.

Notes

A small logic-level-ish MOSFET for loads up to about 200 mA. The BS170 has the reverse pin order.
