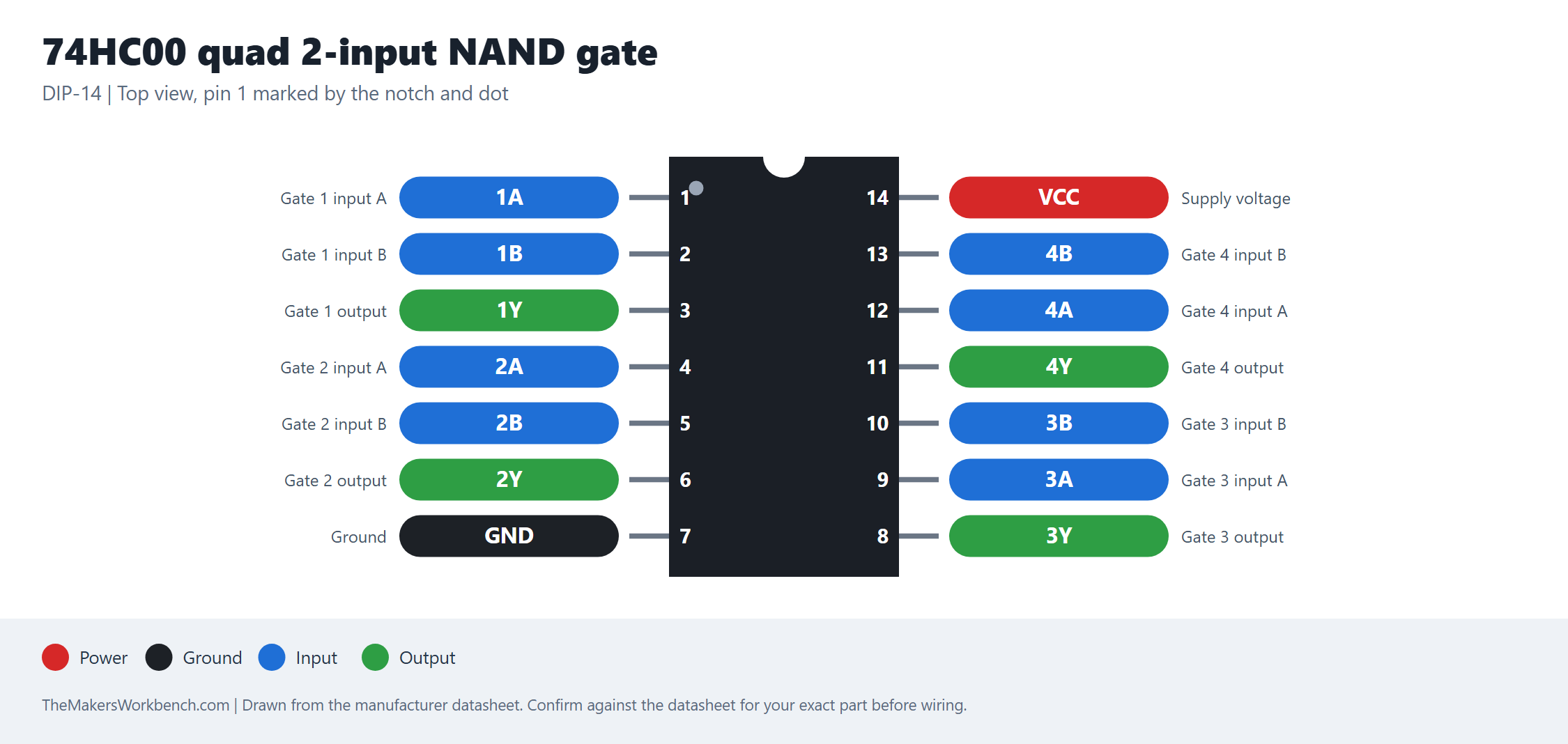

74HC00 quad 2-input NAND gate pinout
← All pinouts · Logic ICs
Click the image to open it full size.
Notes
Output Y = NOT (A AND B). The 7400, 74LS00, and 74HCT00 share this pinout.
