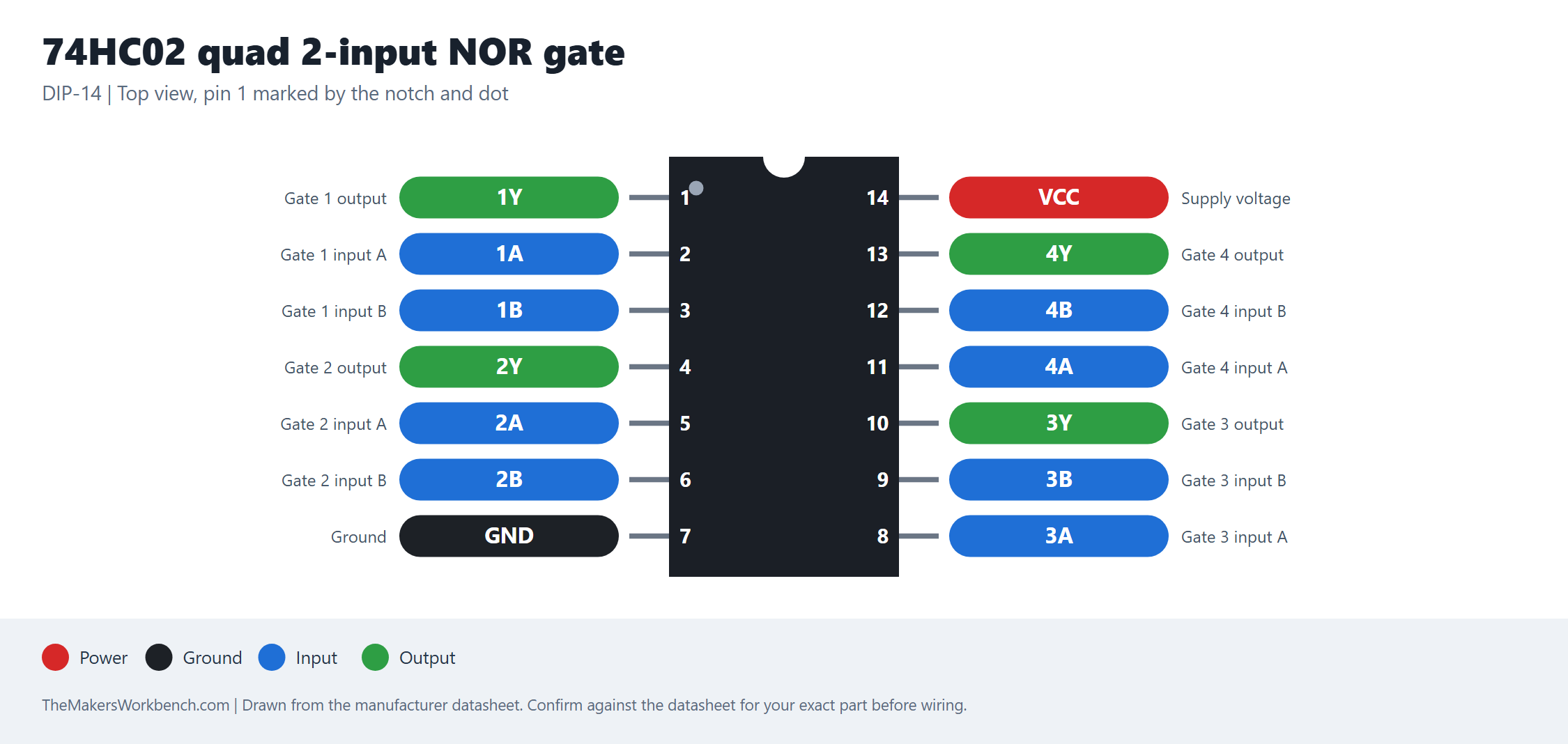

74HC02 quad 2-input NOR gate pinout
← All pinouts · Logic ICs
Click the image to open it full size.
Notes
The NOR gate has its outputs on pins 1, 4, 10, and 13, unlike the 7400 layout.
