74HC04 hex inverter

74HC04 hex inverter pinout

← All pinouts · Logic ICs

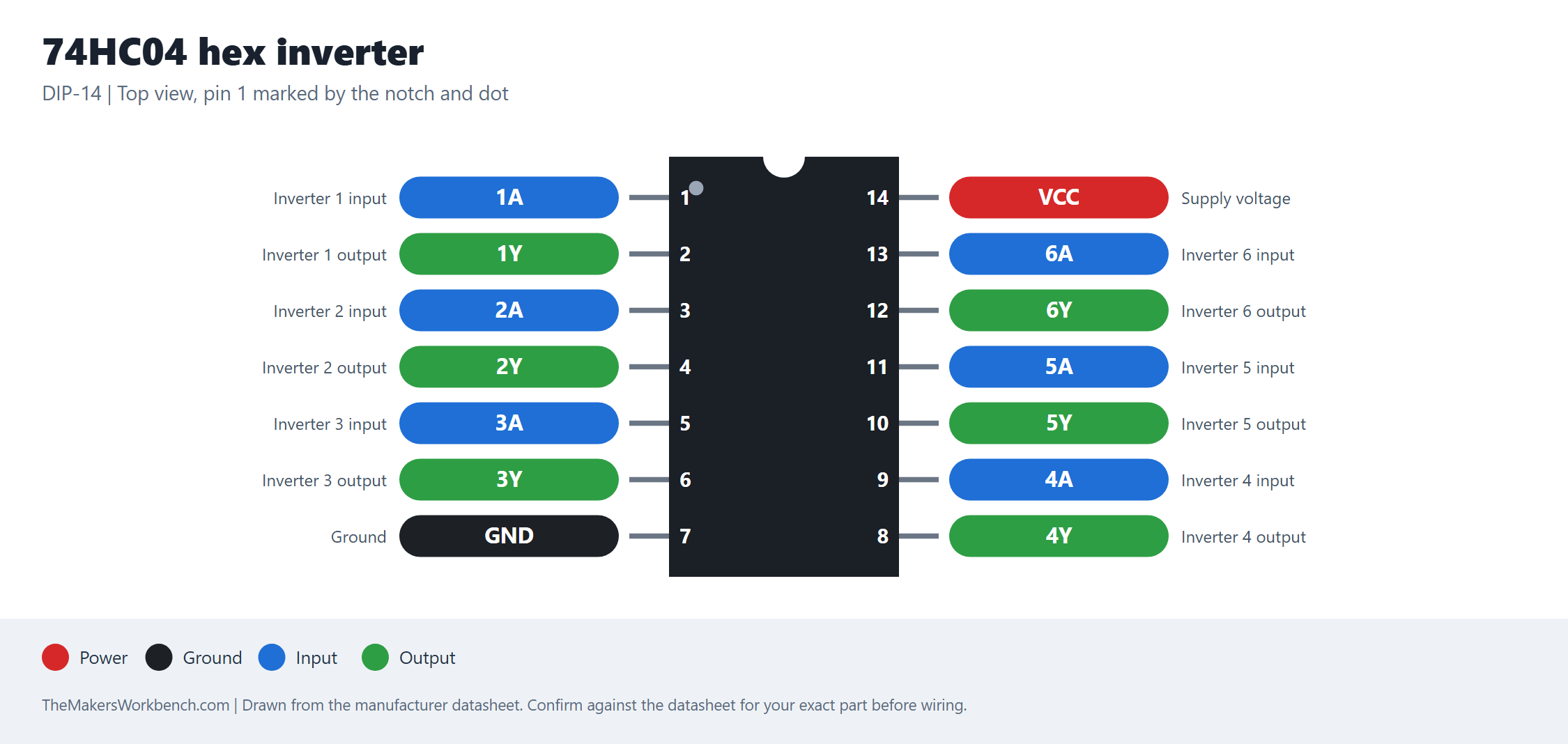

74HC04 hex inverter pinout diagram

Click the image to open it full size.

Notes

Six independent inverters. Tie unused inputs to VCC or GND.
