74HC08 quad 2-input AND gate

74HC08 quad 2-input AND gate pinout

← All pinouts · Logic ICs

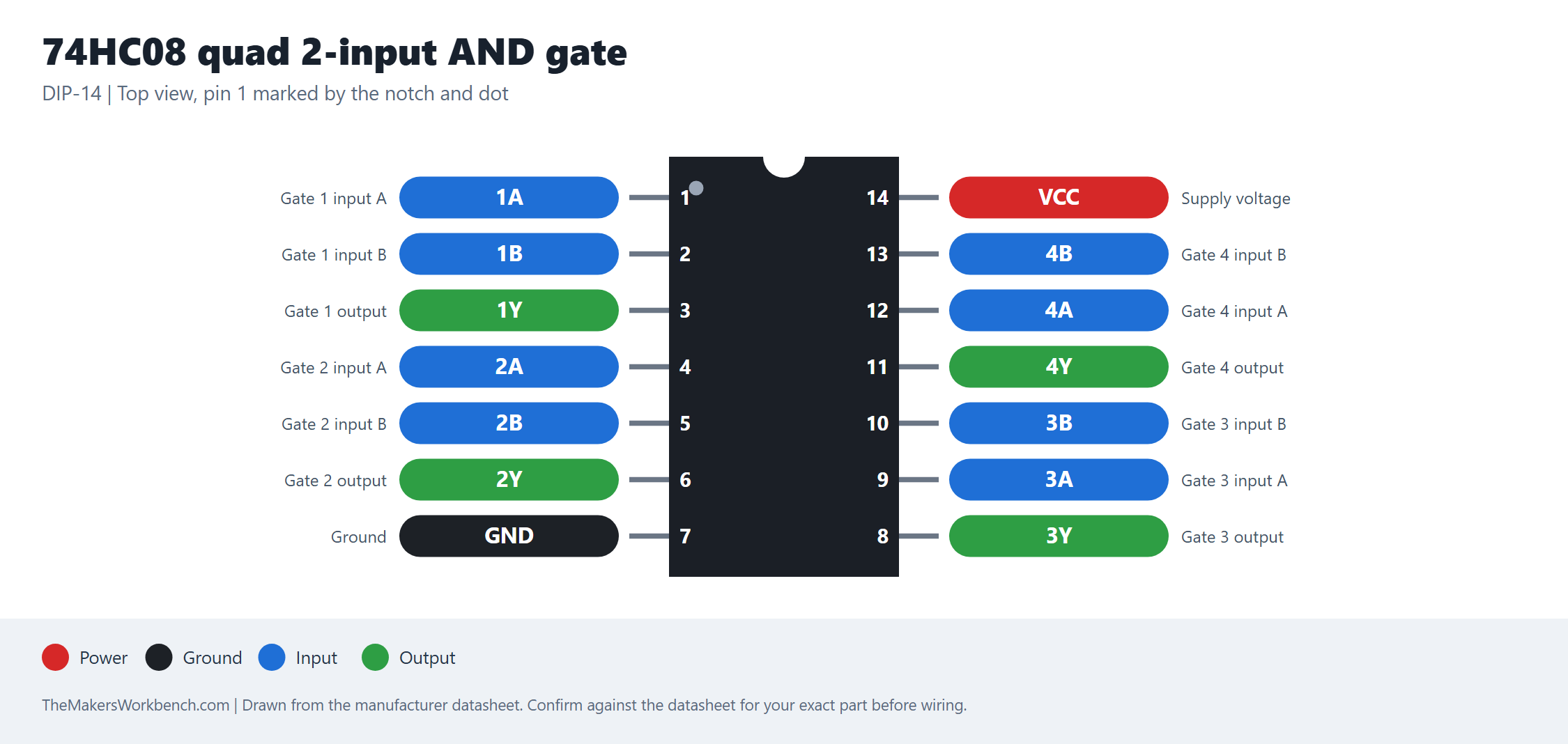

74HC08 quad 2-input AND gate pinout diagram

Click the image to open it full size.

Notes

Output Y = A AND B.
