74HC138 3-to-8 line decoder

74HC138 3-to-8 line decoder pinout

← All pinouts · Logic ICs

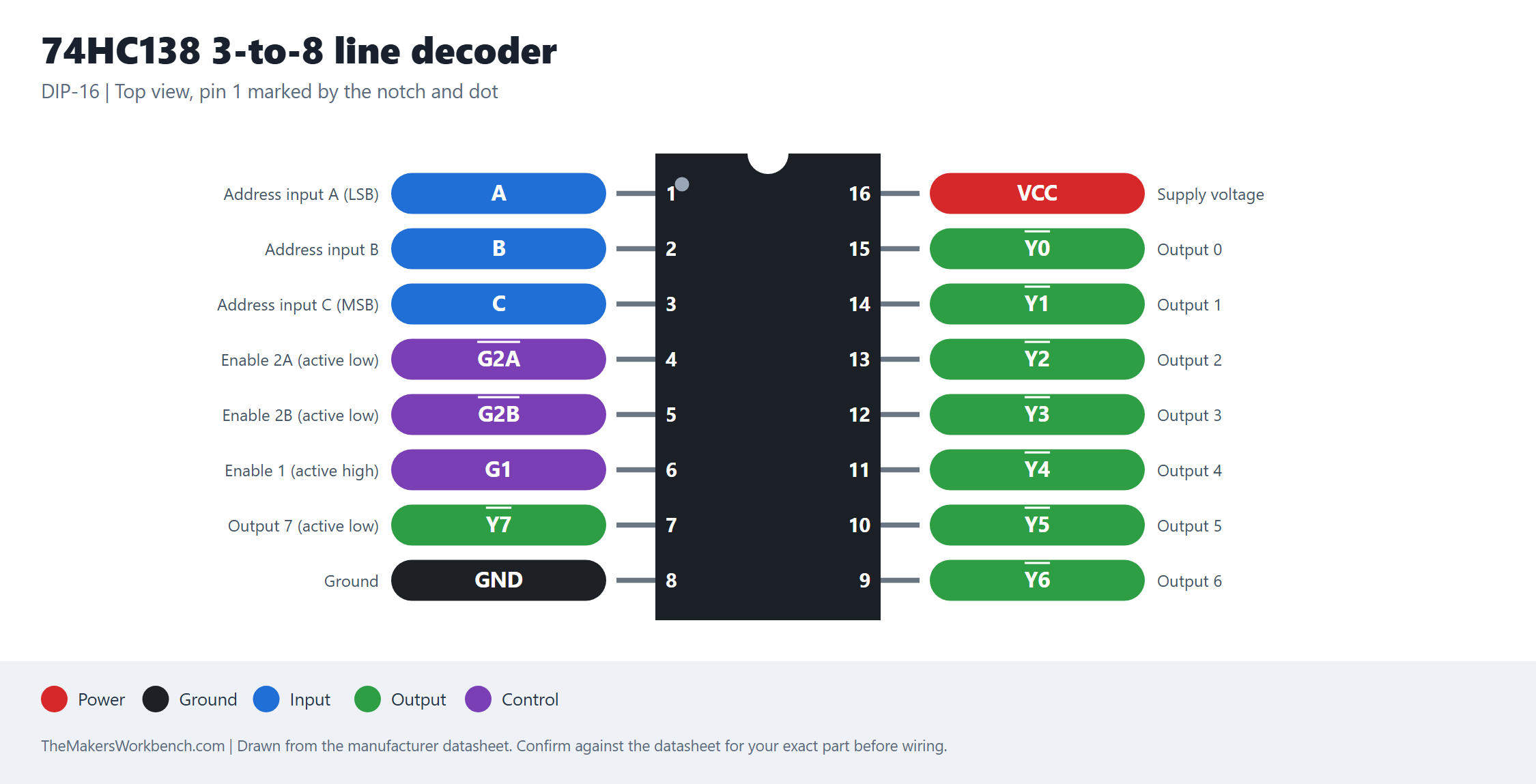

74HC138 3-to-8 line decoder pinout diagram

Click the image to open it full size.

Notes

One output goes low for each address. All three enables must be active (G1 high, G2A and G2B low).
