74HC14 hex Schmitt-trigger inverter

74HC14 hex Schmitt-trigger inverter pinout

← All pinouts · Logic ICs

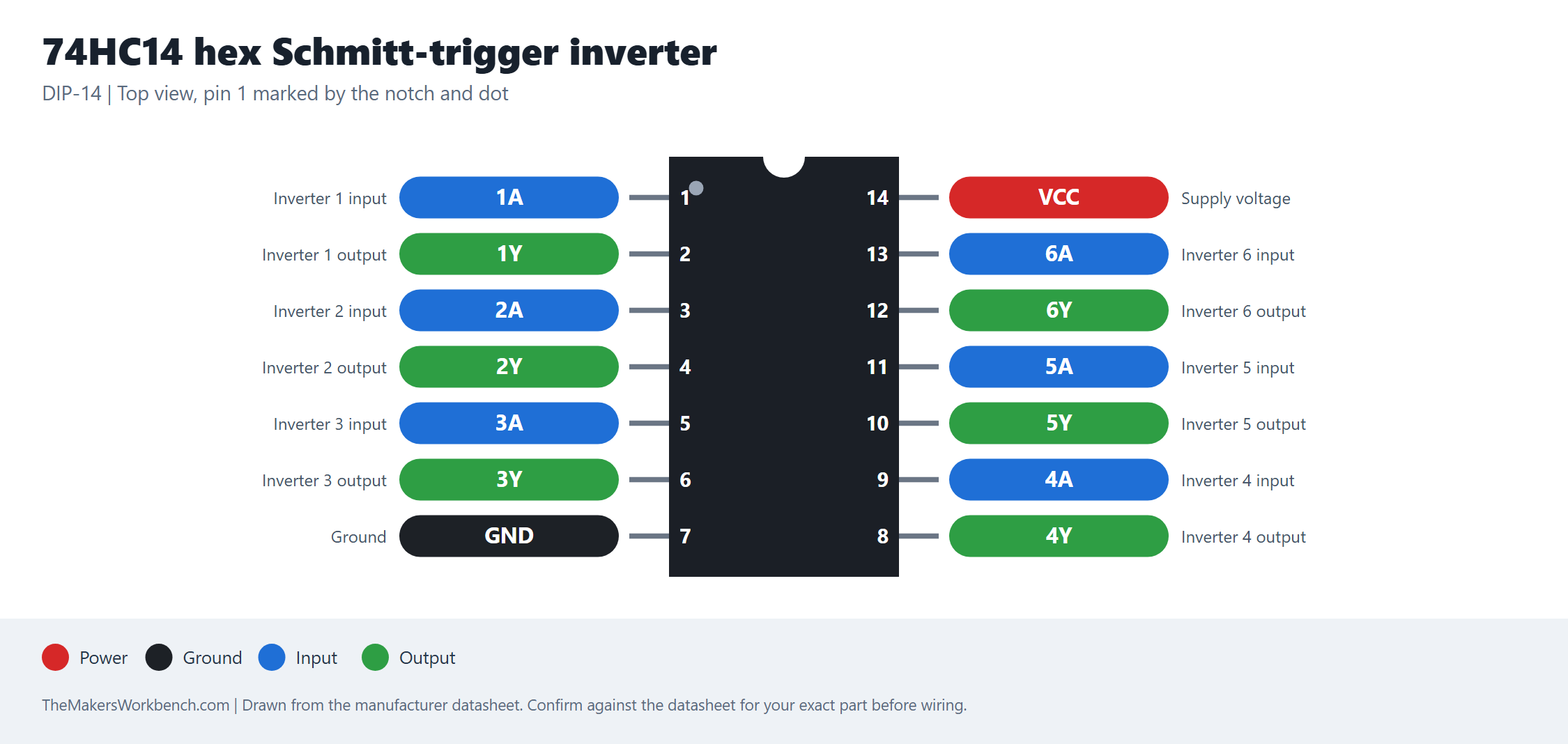

74HC14 hex Schmitt-trigger inverter pinout diagram

Click the image to open it full size.

Notes

Schmitt-trigger inputs clean up slow or noisy signals, so it is popular for switch debouncing and simple RC oscillators.
