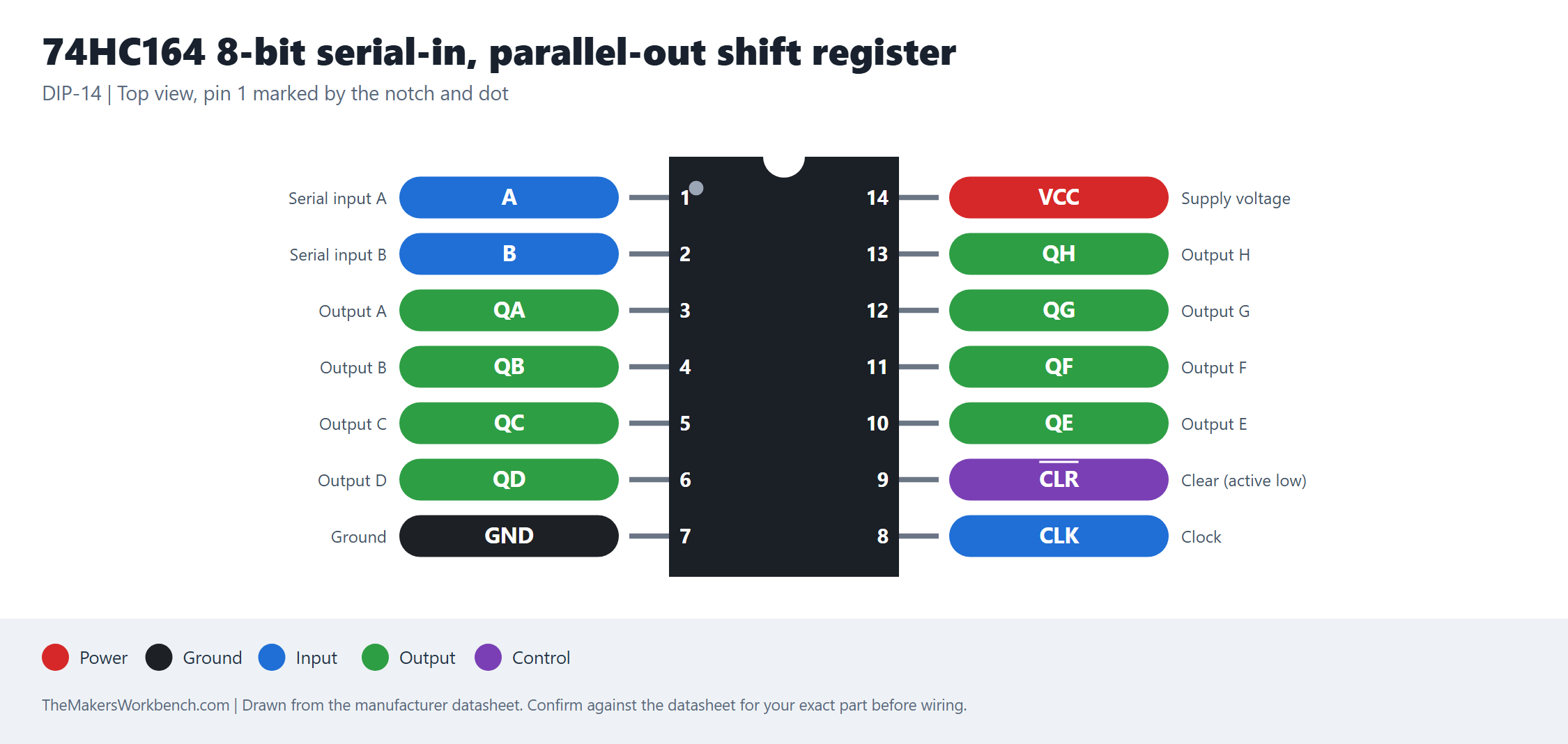

74HC164 8-bit serial-in, parallel-out shift register pinout
← All pinouts · Logic ICs
Click the image to open it full size.
Notes
Unlike the 74HC595, it has no output latch, so the outputs change as data shifts in.
74HC164 8-bit serial-in, parallel-out shift register
