74HC165 8-bit parallel-in, serial-out shift register

74HC165 8-bit parallel-in, serial-out shift register pinout

← All pinouts · Logic ICs

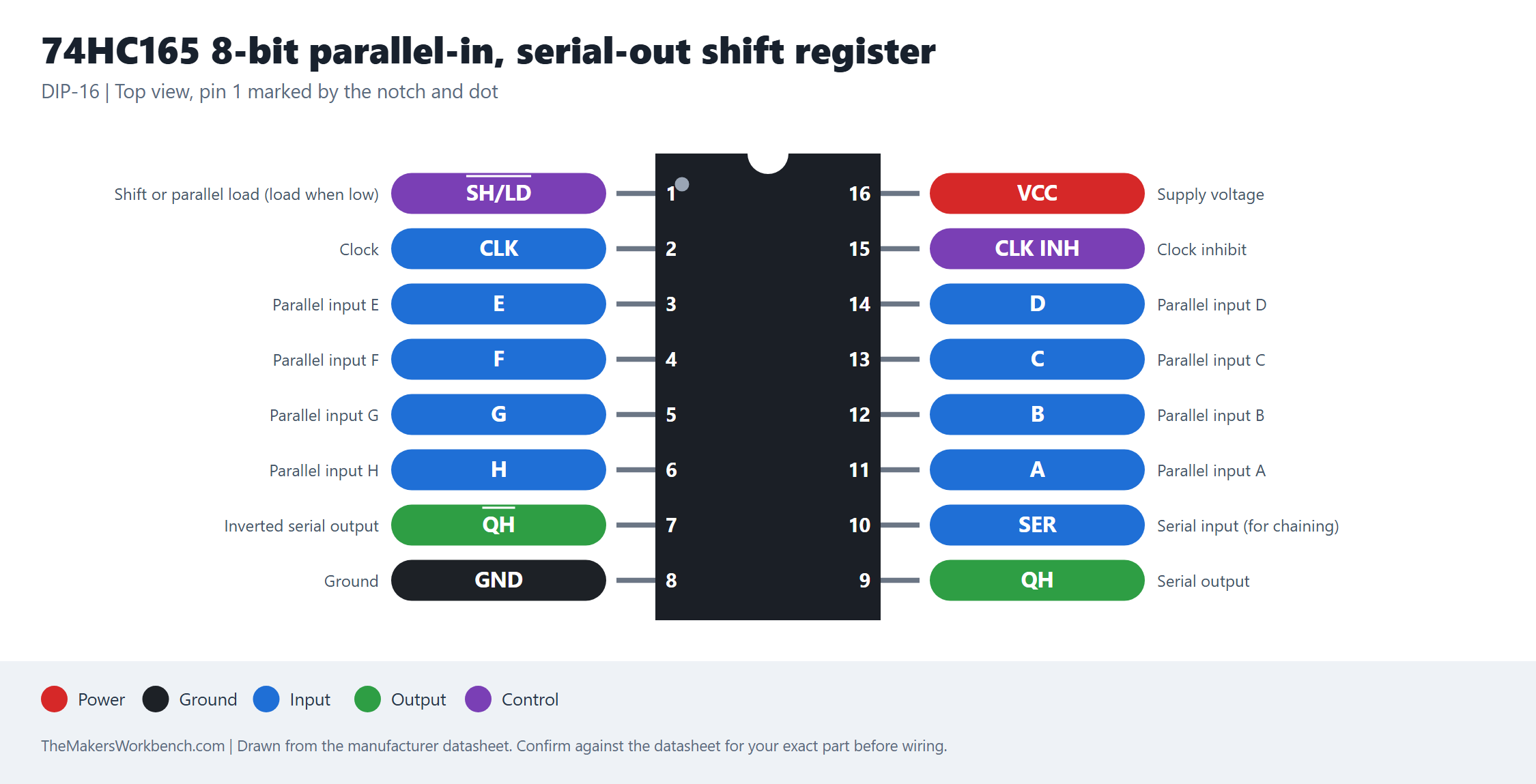

74HC165 8-bit parallel-in, serial-out shift register pinout diagram

Click the image to open it full size.

Notes

Used to read many buttons with three microcontroller pins.
