74HC245 octal bus transceiver

74HC245 octal bus transceiver pinout

← All pinouts · Logic ICs

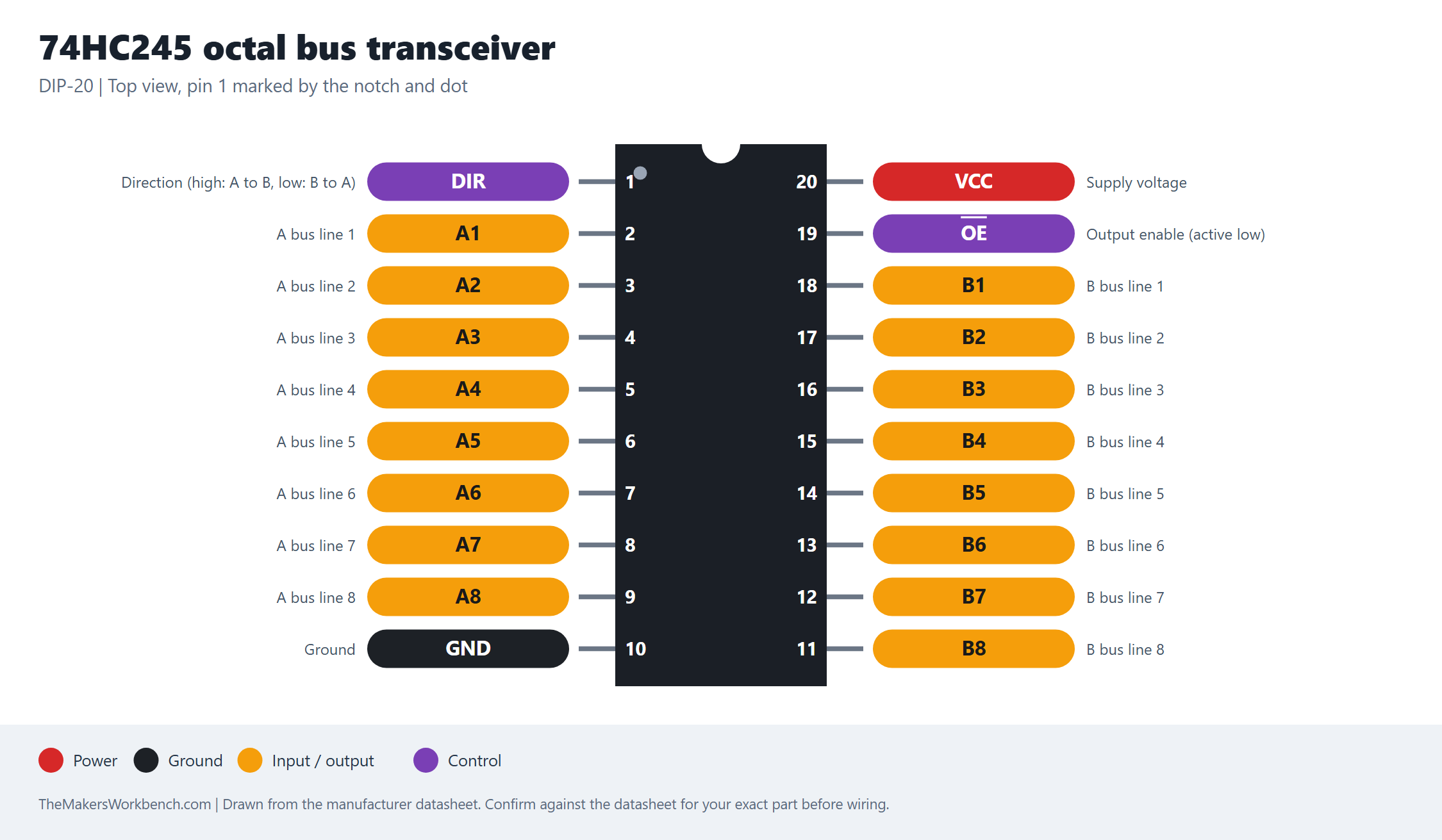

74HC245 octal bus transceiver pinout diagram

Click the image to open it full size.

Notes

Often used as a buffer between a 3.3 V and a 5 V system. Check the family: the 74HCT245 accepts 3.3 V signals when powered from 5 V.
