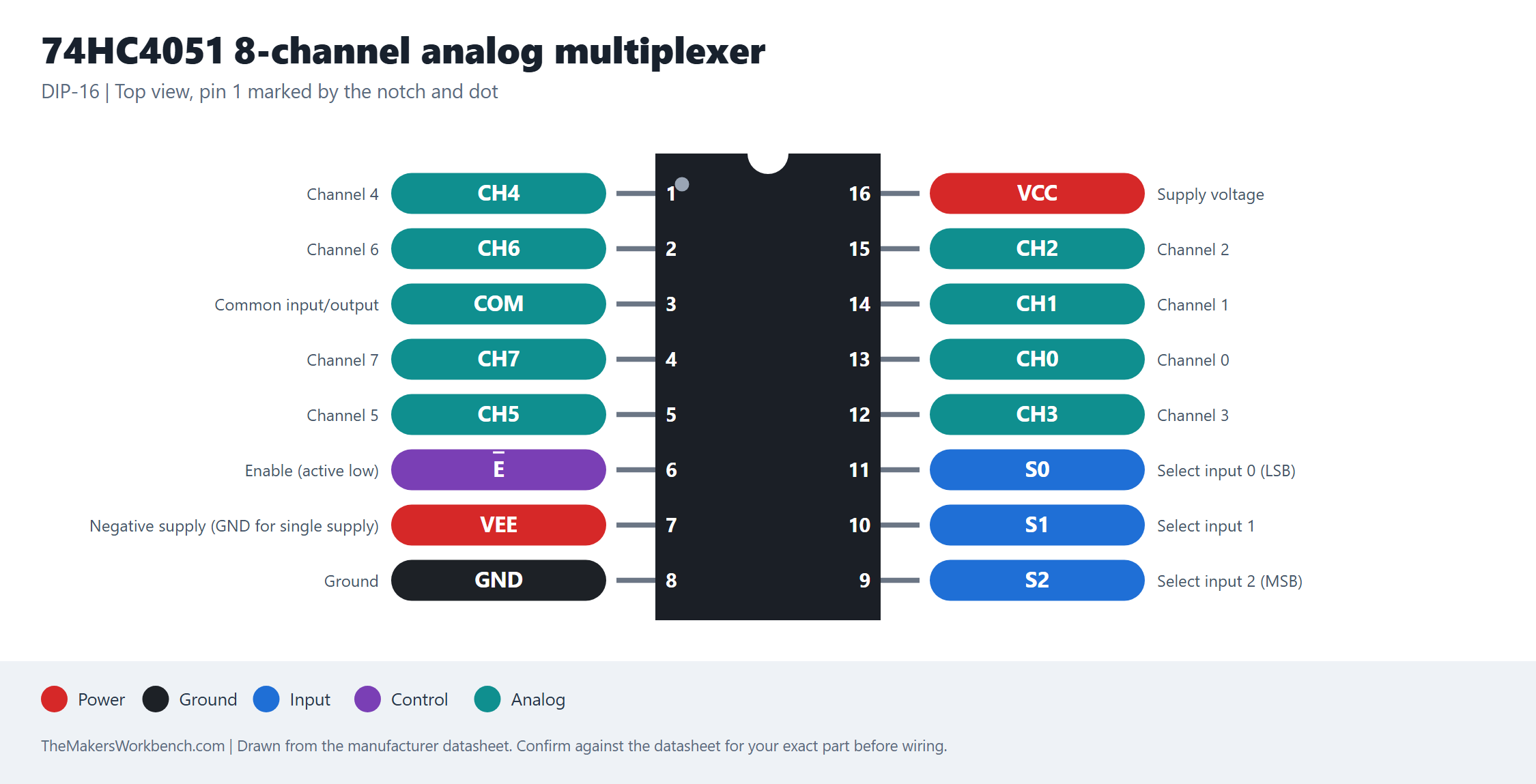

74HC4051 8-channel analog multiplexer pinout
← All pinouts · Logic ICs
Click the image to open it full size.
Notes
Connect VEE to GND for a single-supply circuit. Use it to read many analog sensors on one ADC pin.
74HC4051 8-channel analog multiplexer
