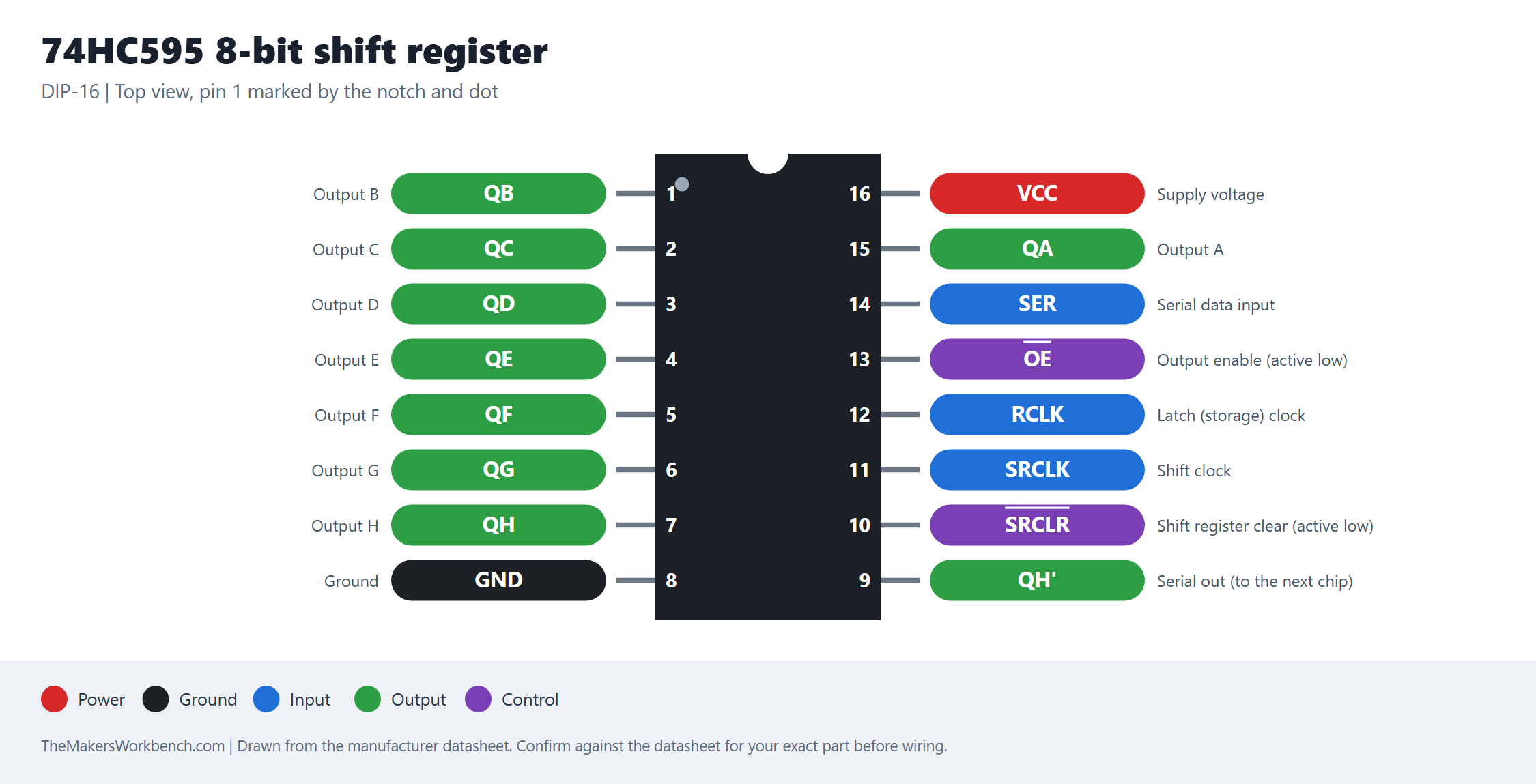

74HC595 8-bit shift register pinout
← All pinouts · Logic ICs
Notes
Wire SRCLR to VCC and OE to GND for normal use. Chain chips by connecting QH' to the next chip's SER.
