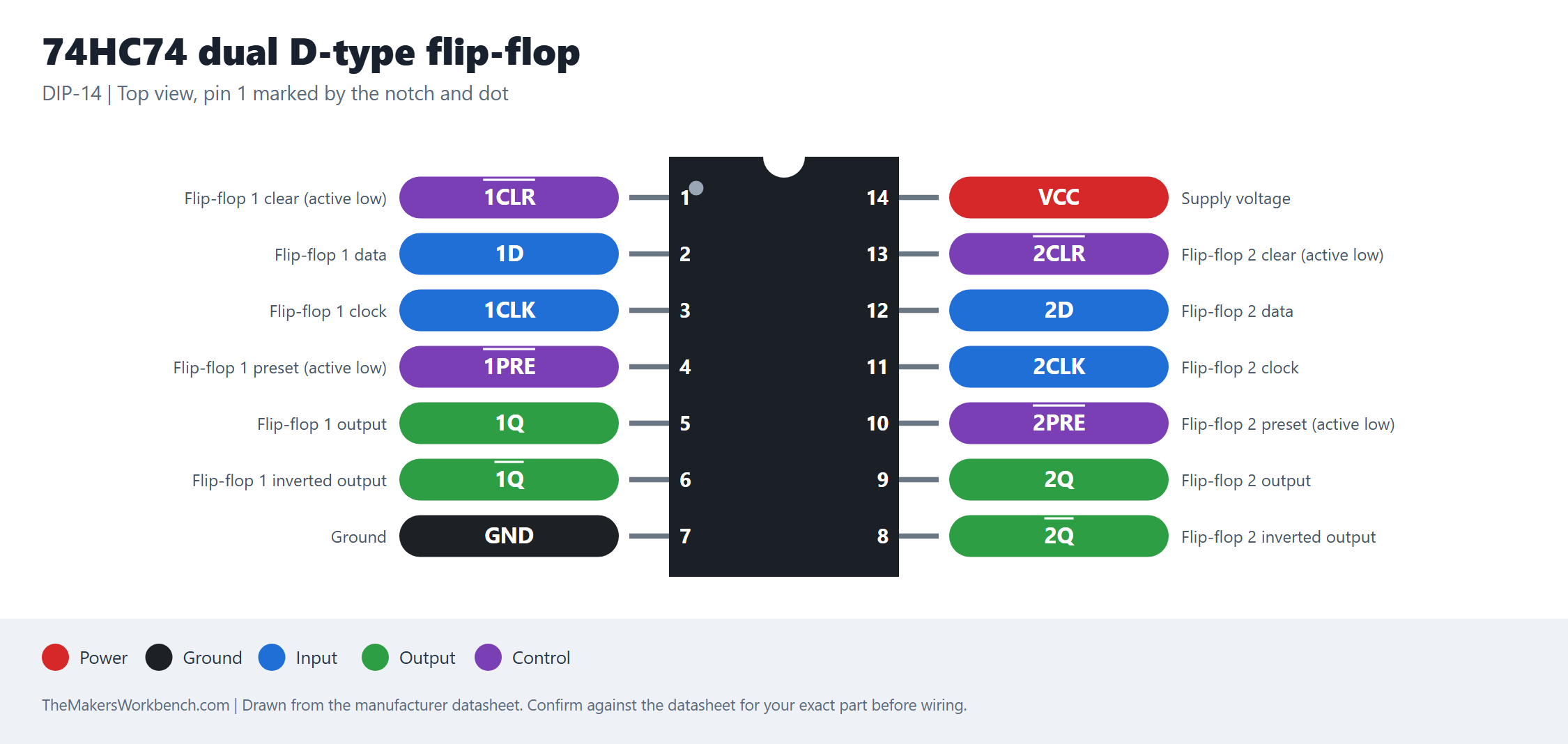

74HC74 dual D-type flip-flop pinout
← All pinouts · Logic ICs
Click the image to open it full size.
Notes
Data is captured on the rising clock edge. Tie PRE and CLR high when not used.
74HC74 dual D-type flip-flop
← All pinouts · Logic ICs
Click the image to open it full size.
Data is captured on the rising clock edge. Tie PRE and CLR high when not used.
