A4988 stepper driver module

A4988 stepper driver module pinout

← All pinouts · Motor drivers

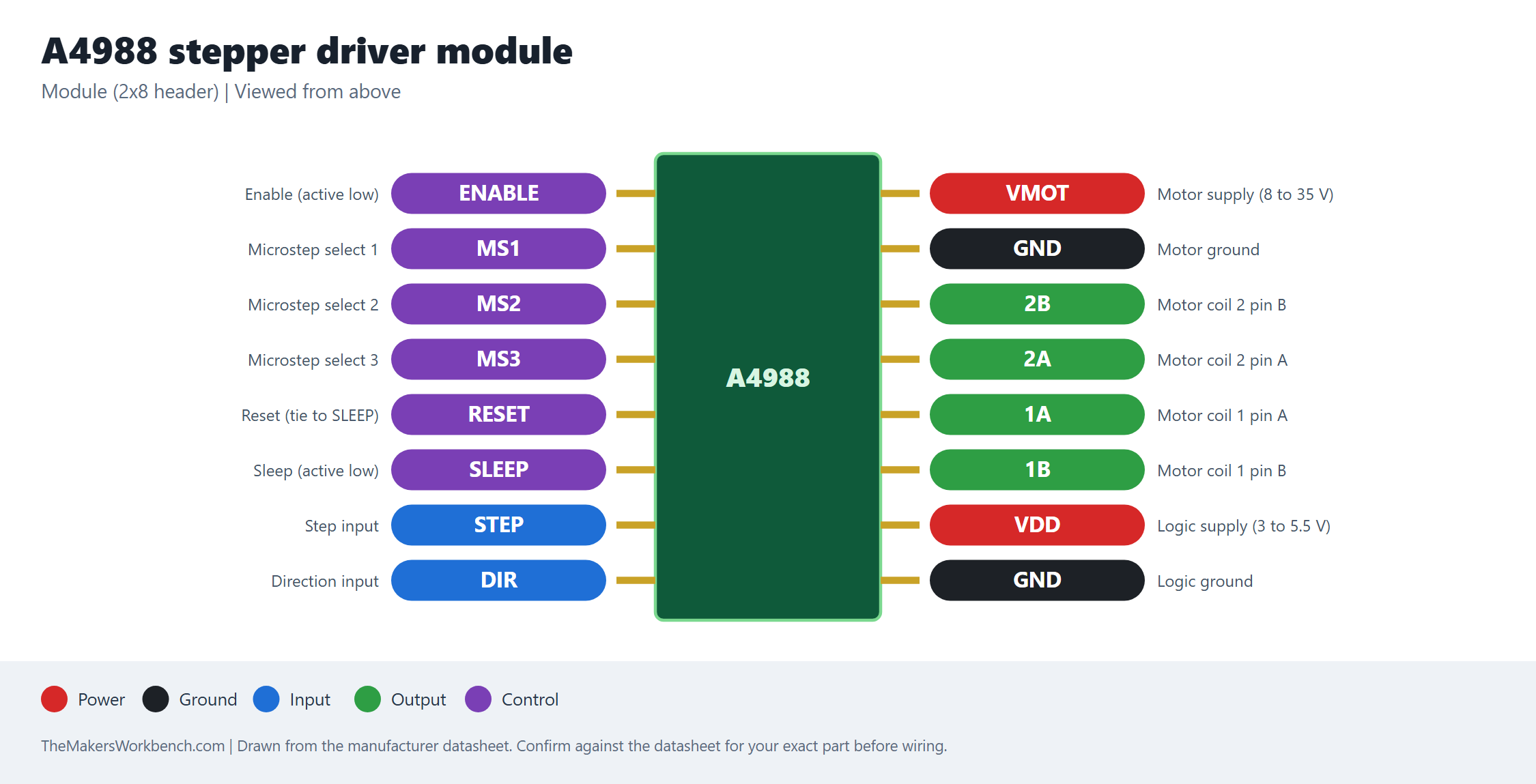

A4988 stepper driver module pinout diagram

Click the image to open it full size.

Notes

Left header from the top: ENABLE, MS1, MS2, MS3, RESET, SLEEP, STEP, DIR. Right header from the top: VMOT, GND, 2B, 2A, 1A, 1B, VDD, GND. Put a 100 uF capacitor across VMOT and GND, and set the current limit before connecting a motor.
