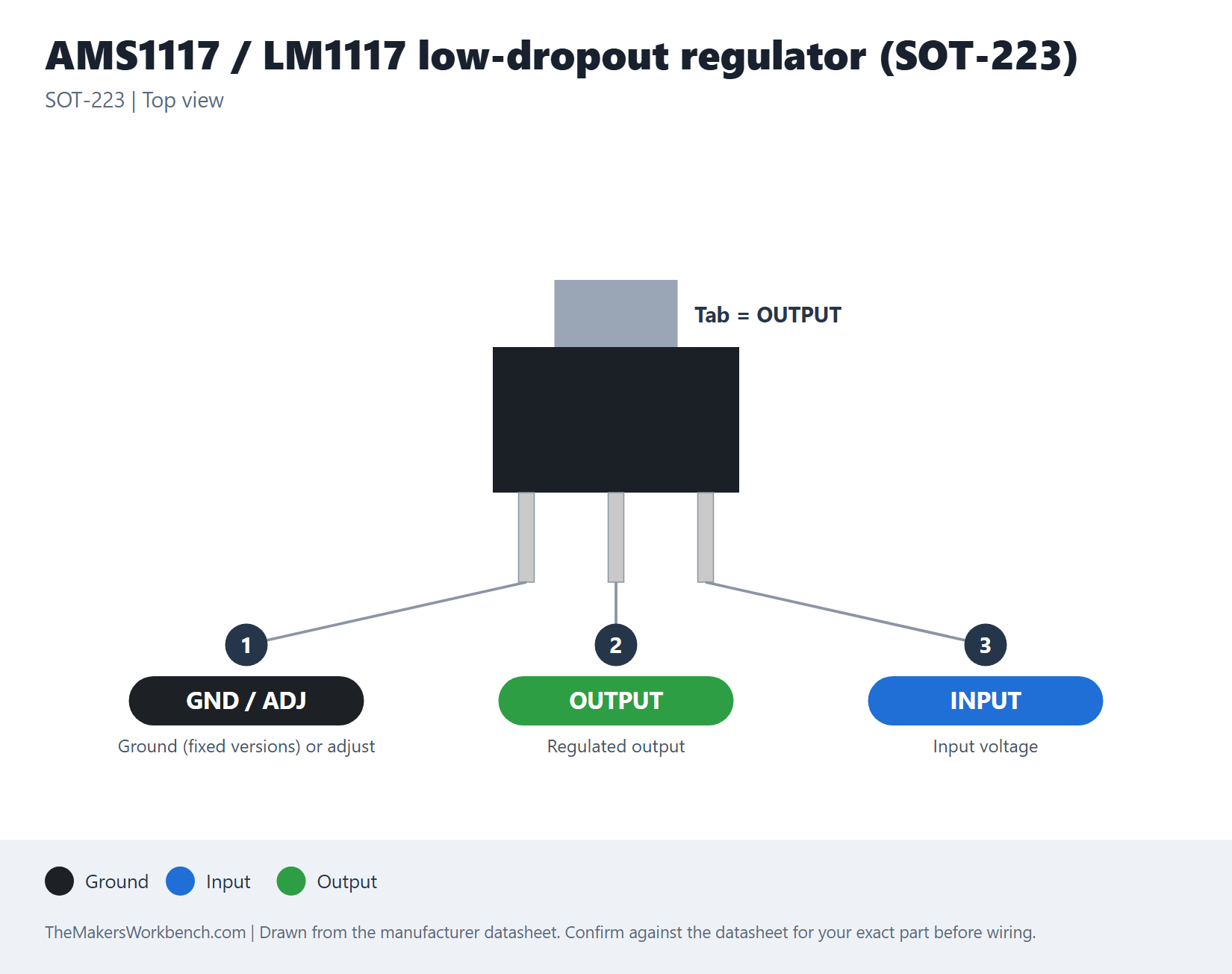

AMS1117 / LM1117 low-dropout regulator (SOT-223) pinout
← All pinouts · Voltage regulators
Click the image to open it full size.
Notes
The large tab is connected to OUTPUT. Fixed 1.8 V, 2.5 V, 3.3 V, and 5 V versions are common. Needs a capacitor on the output.
