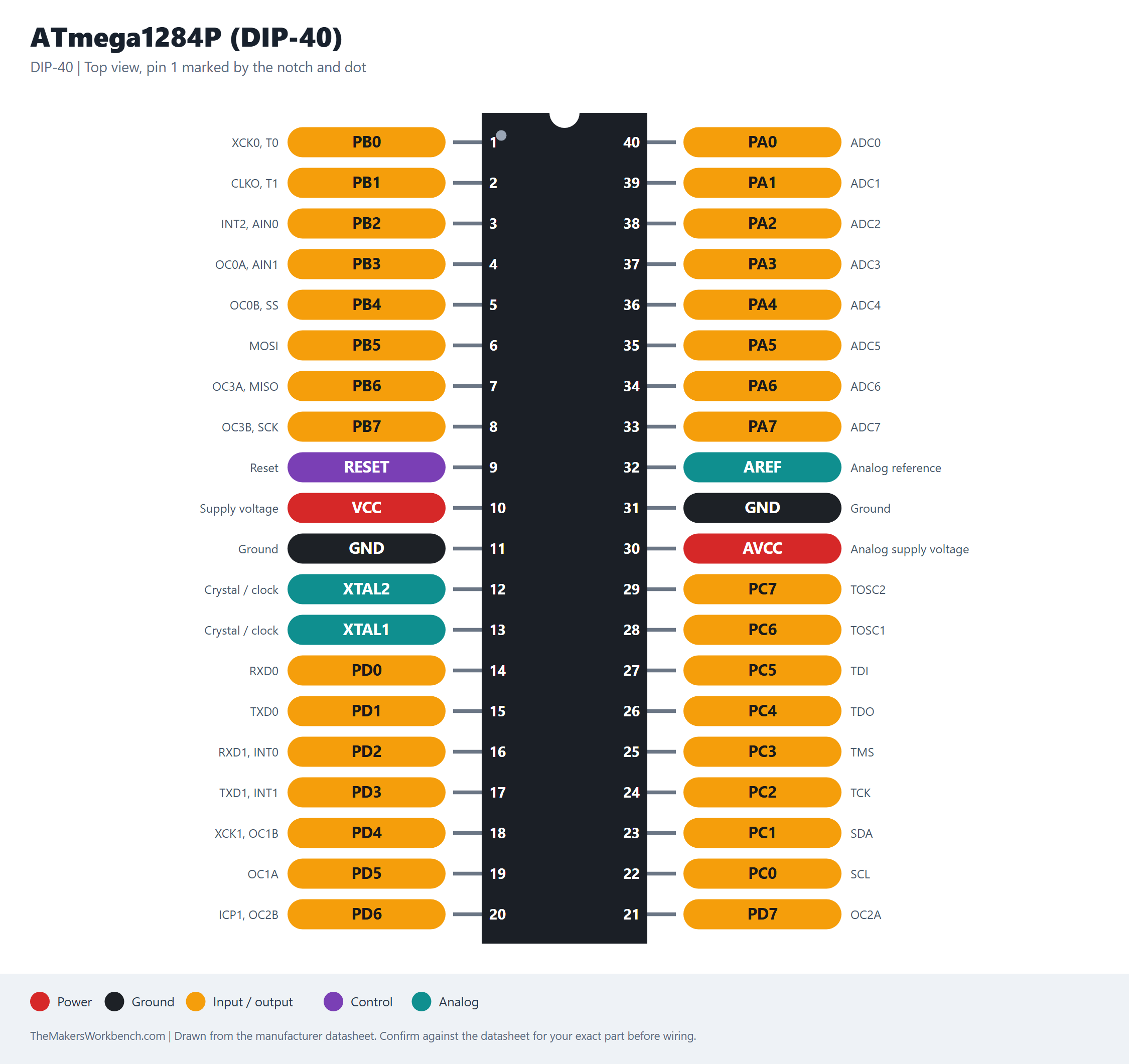

ATmega1284P (DIP-40) pinout
← All pinouts · Microcontroller chips
Click the image to open it full size.
Notes
A 40-pin AVR with 128 KB of flash, 16 KB of RAM and two hardware UARTs. Programming (ISP) uses RESET, MOSI, MISO, SCK, VCC and GND.
