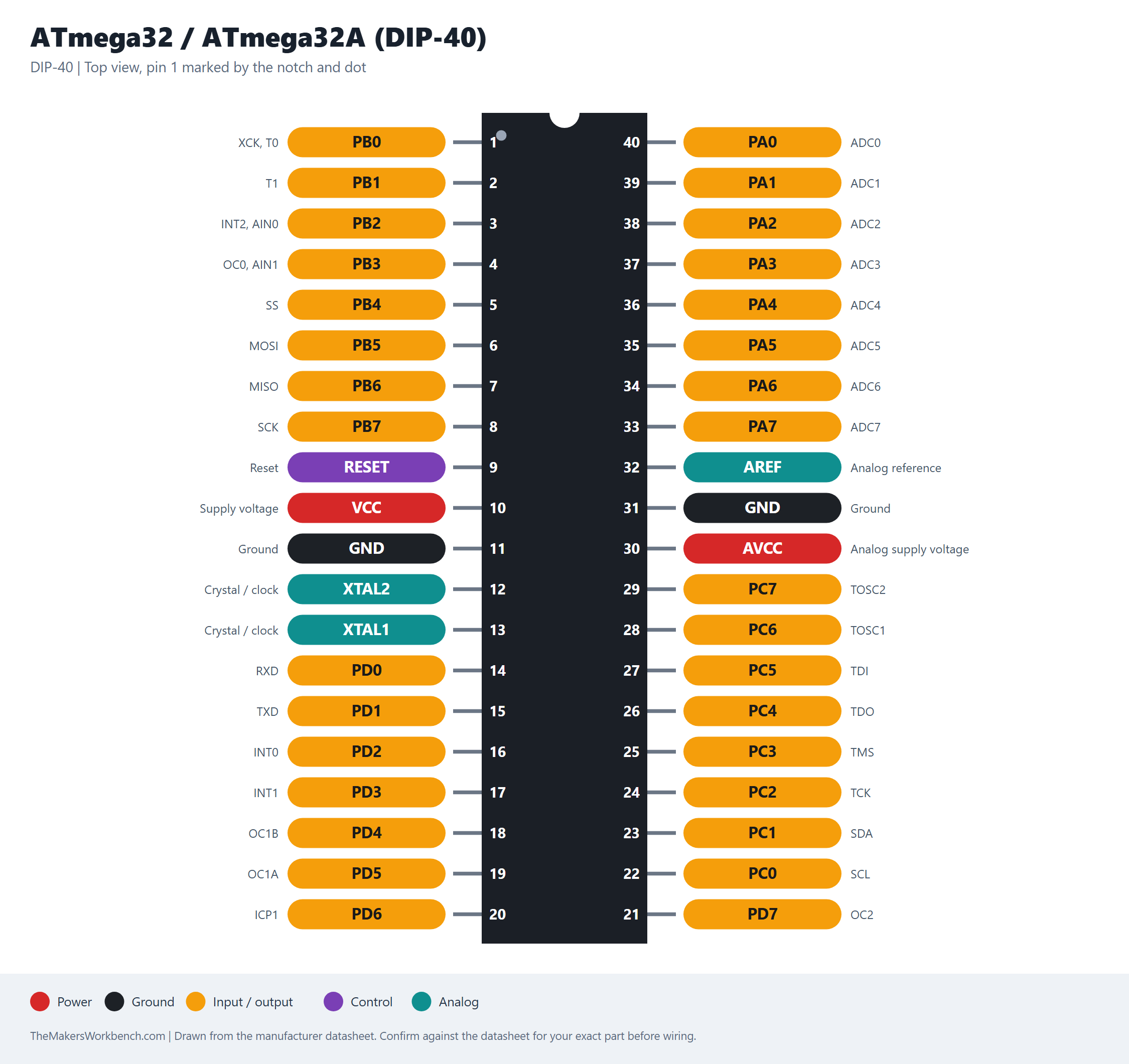

ATmega32 / ATmega32A (DIP-40) pinout
← All pinouts · Microcontroller chips
Click the image to open it full size.
Notes
A 40-pin AVR with 32 KB of flash and four 8-bit ports. Port C pins 2 to 5 carry the JTAG signals unless the JTAGEN fuse is disabled. Programming (ISP) uses RESET, MOSI, MISO, SCK, VCC and GND.
