ATmega8 / ATmega8A (DIP-28) pinout
← All pinouts · Microcontroller chips

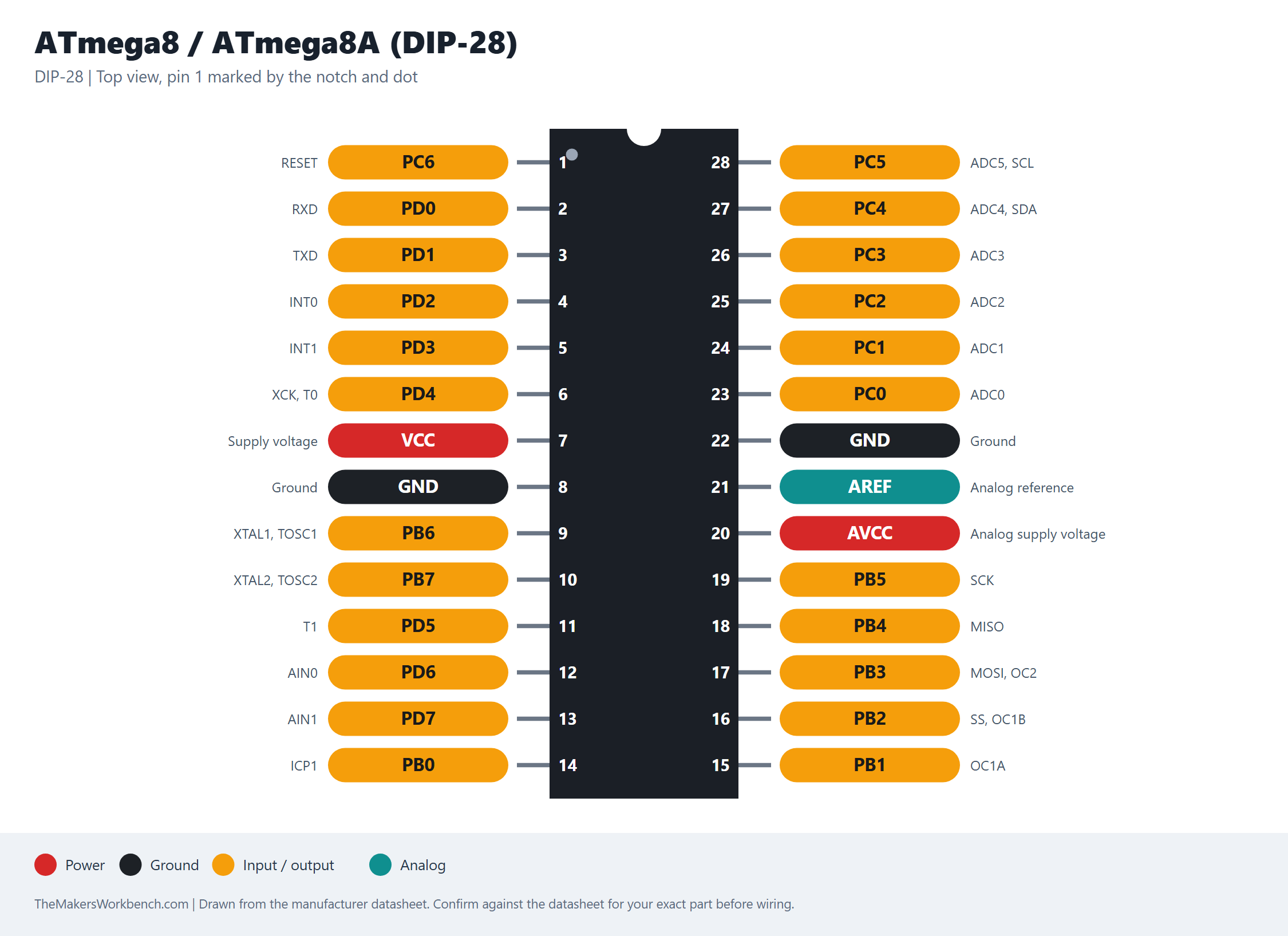

Click the image to open it full size.
Notes
The older sibling of the ATmega328P with 8 KB of flash. The pin layout matches the 328P except for a few secondary functions. Programming (ISP) uses RESET, MOSI, MISO, SCK, VCC and GND.
