ATtiny2313 / 4313 (DIP-20) pinout
← All pinouts · Microcontroller chips

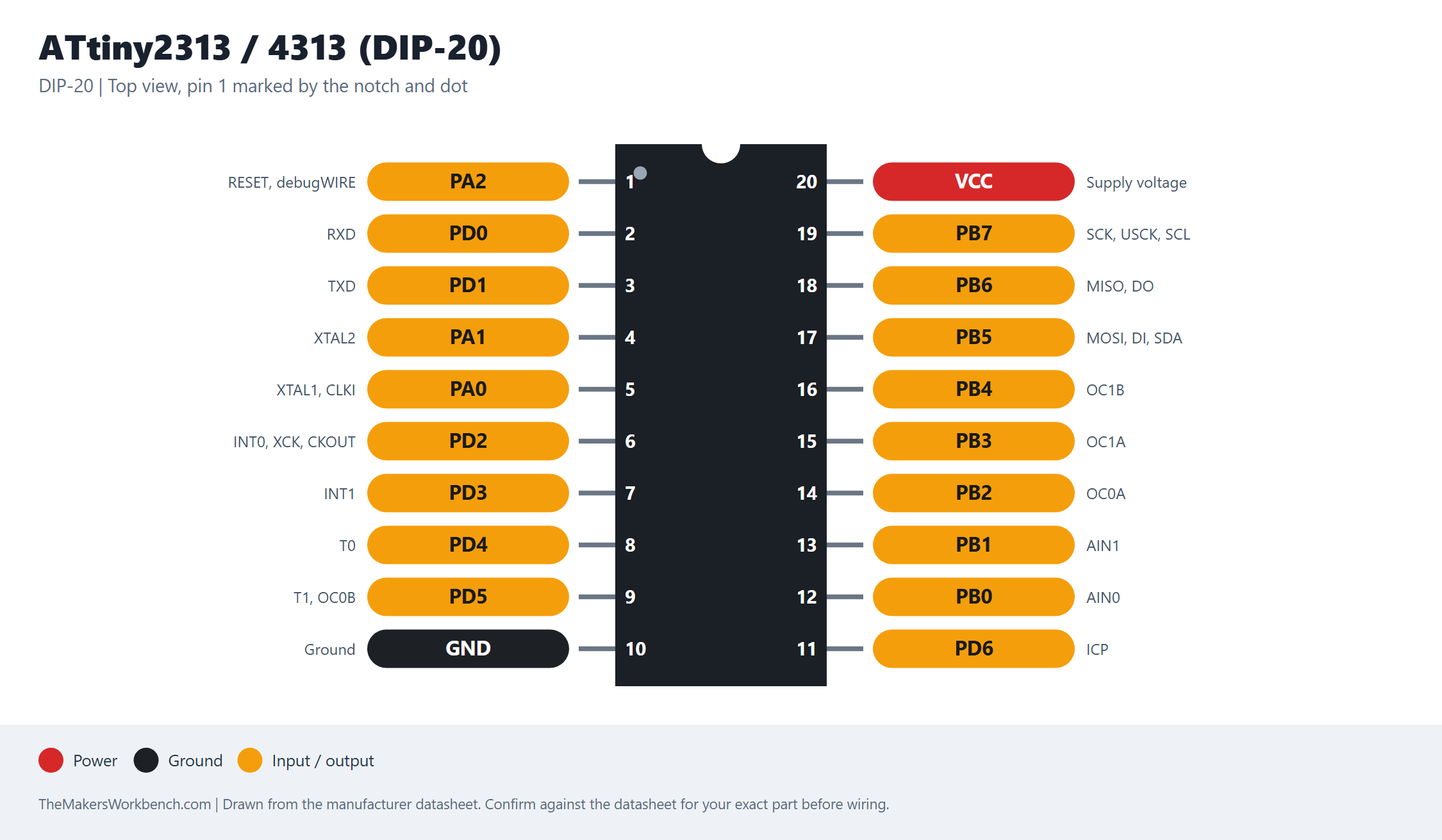

Click the image to open it full size.
Notes
A 20-pin AVR with a hardware UART (RXD, TXD) and 18 I/O lines. PA2 doubles as RESET. Programming (ISP) uses RESET, MOSI, MISO, SCK, VCC and GND.
