ATtiny24 / 44 / 84 (DIP-14) pinout
← All pinouts · Microcontroller chips
Notes

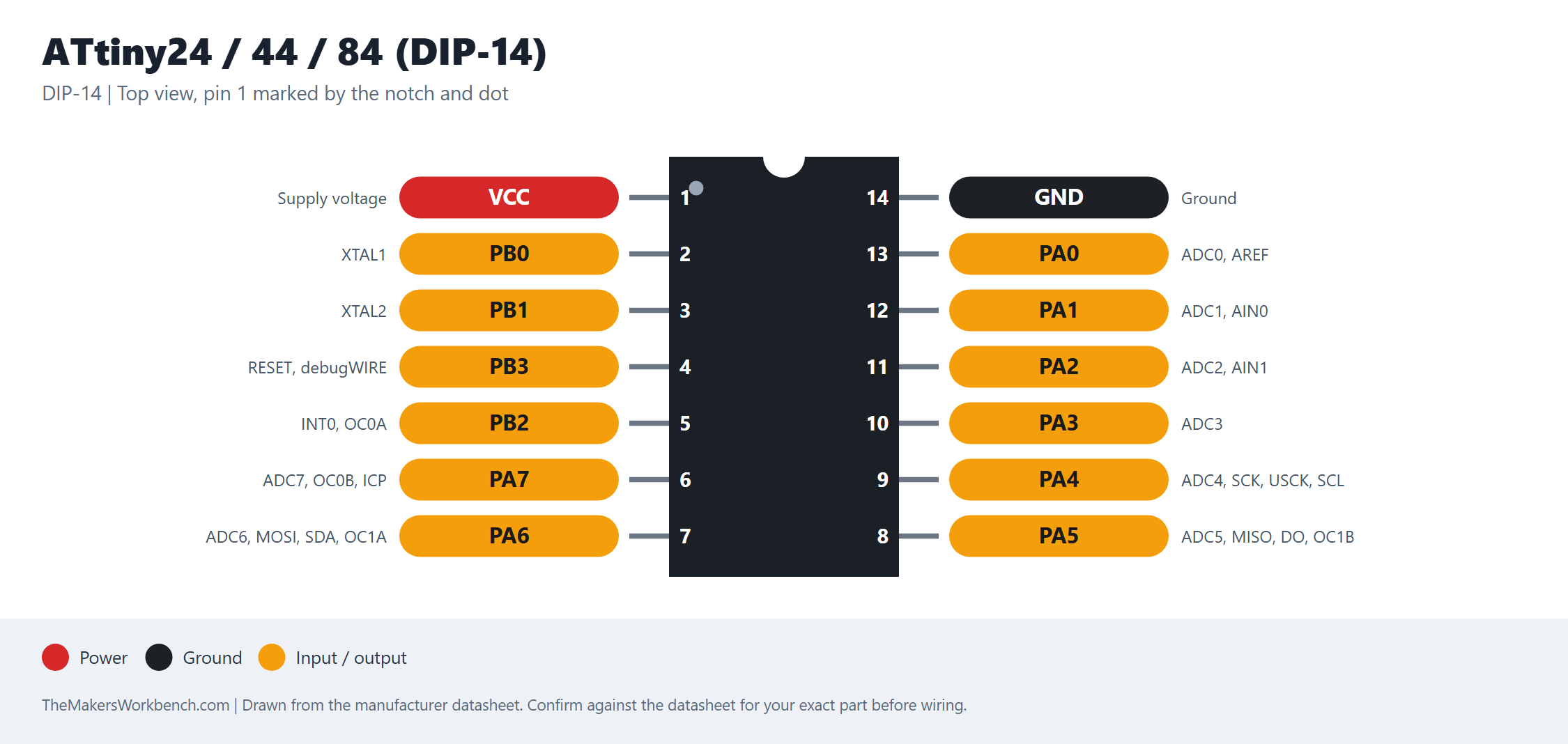

Flash sizes of 2, 4 and 8 KB share one pinout. Eleven I/O pins and eight ADC channels. PB3 doubles as RESET. Programming (ISP) uses RESET, MOSI, MISO, SCK, VCC and GND.
← All pinouts · Microcontroller chips
Flash sizes of 2, 4 and 8 KB share one pinout. Eleven I/O pins and eight ADC channels. PB3 doubles as RESET. Programming (ISP) uses RESET, MOSI, MISO, SCK, VCC and GND.
