ATtiny25 / 45 / 85 (DIP-8)

ATtiny25 / 45 / 85 (DIP-8) pinout

← All pinouts · Microcontroller chips

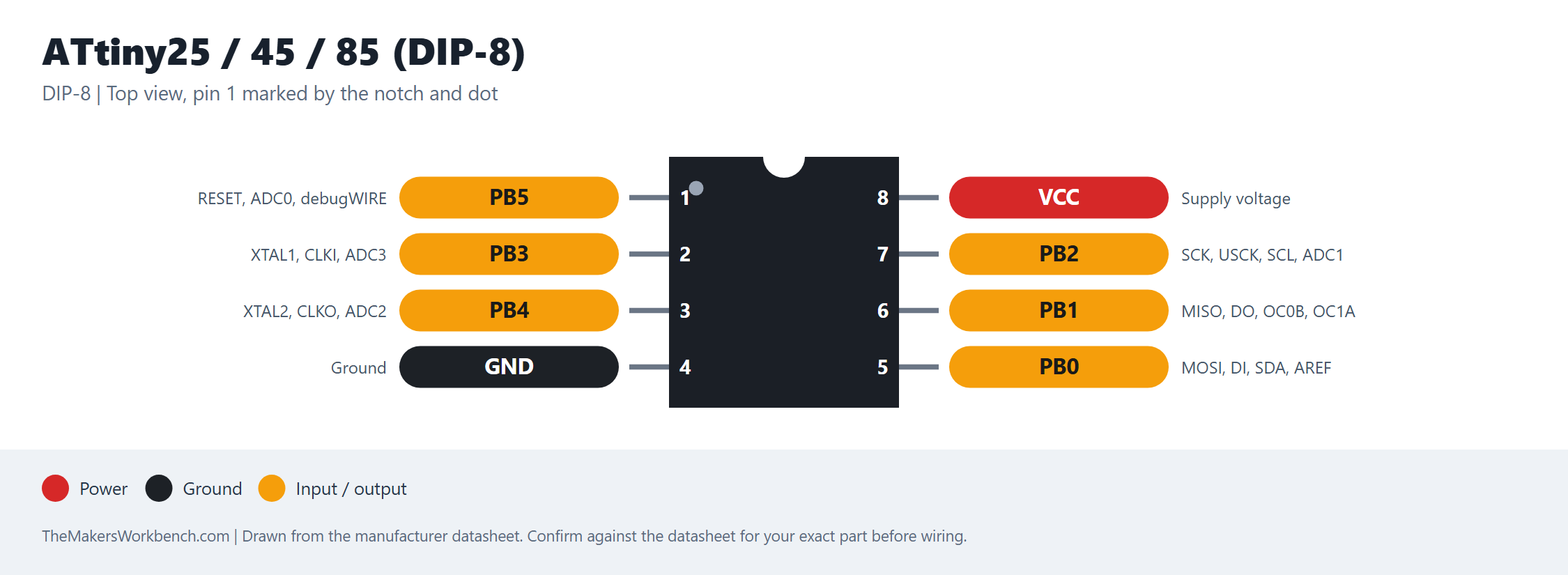

ATtiny25 / 45 / 85 (DIP-8) pinout diagram

Click the image to open it full size.

Notes

The three chips differ only in flash size (2, 4 and 8 KB) and share one pinout. PB5 doubles as RESET. The USI peripheral provides I2C and SPI on PB0 to PB2. Programming (ISP) uses RESET, MOSI, MISO, SCK, VCC and GND.
