BC547 / BC548 NPN transistor (TO-92) pinout
← All pinouts · Transistors and MOSFETs
Click the image to open it full size.
Notes

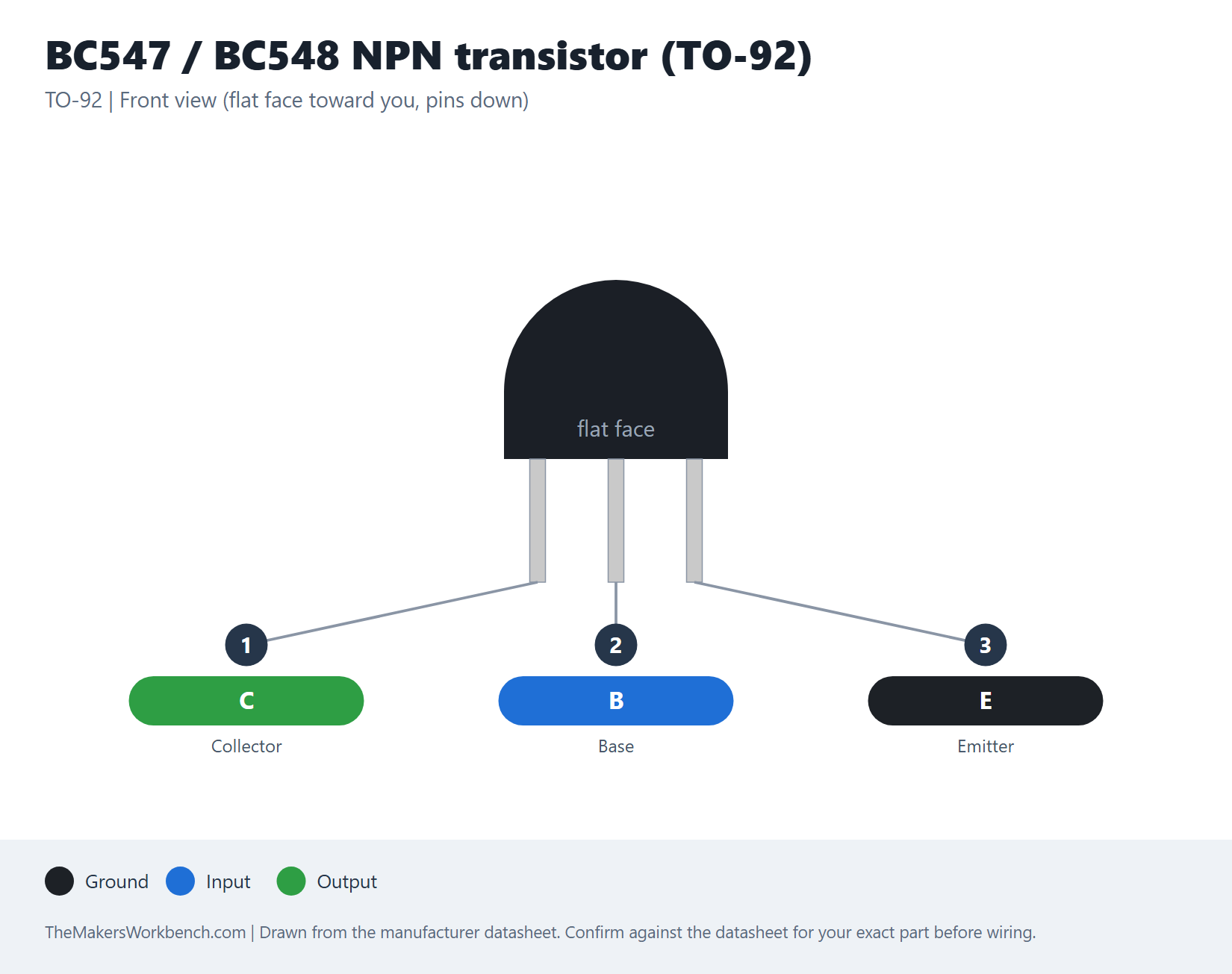

From the flat face the order is Collector, Base, Emitter. The BC557 PNP and the BC337 use the same order. Always confirm with your part's datasheet.
