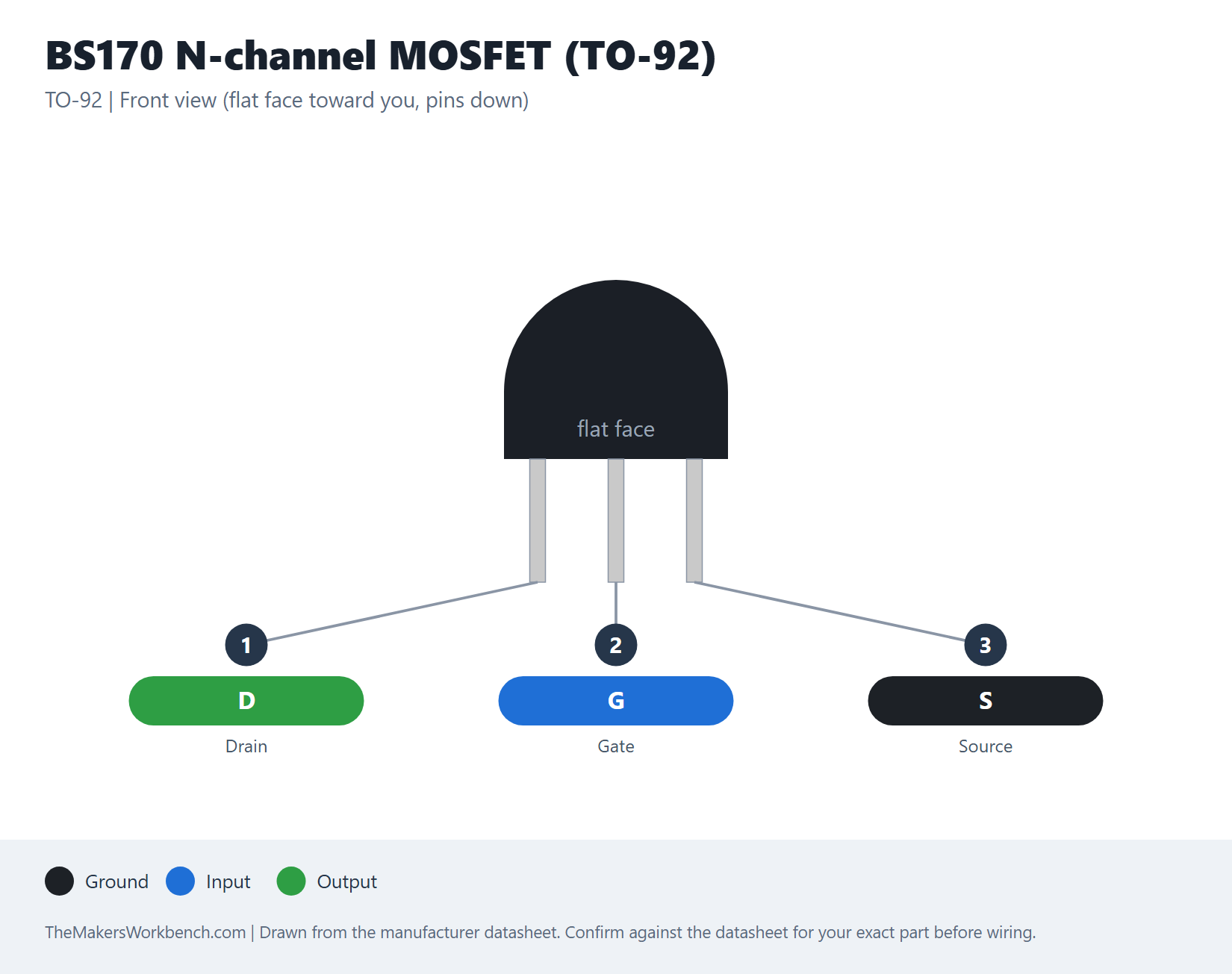

BS170 N-channel MOSFET (TO-92) pinout
← All pinouts · Transistors and MOSFETs
Click the image to open it full size.
Notes
From the flat face the order is Drain, Gate, Source, the reverse of the 2N7000.
BS170 N-channel MOSFET (TO-92)
