CD4017 decade counter / divider

CD4017 decade counter / divider pinout

← All pinouts · Logic ICs

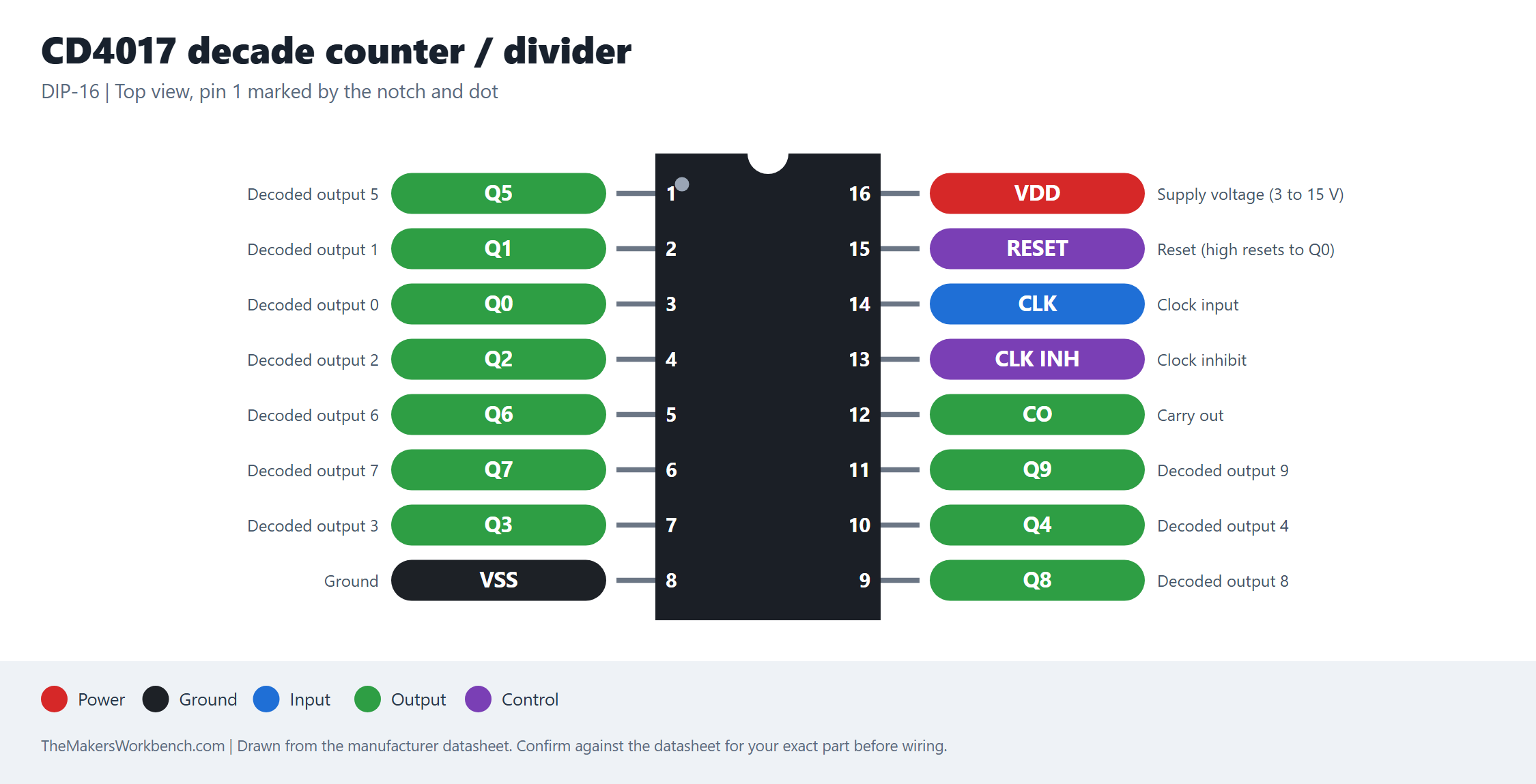

CD4017 decade counter / divider pinout diagram

Click the image to open it full size.

Notes

One of ten outputs is high at a time, stepping on each clock pulse. A classic for LED chasers.
