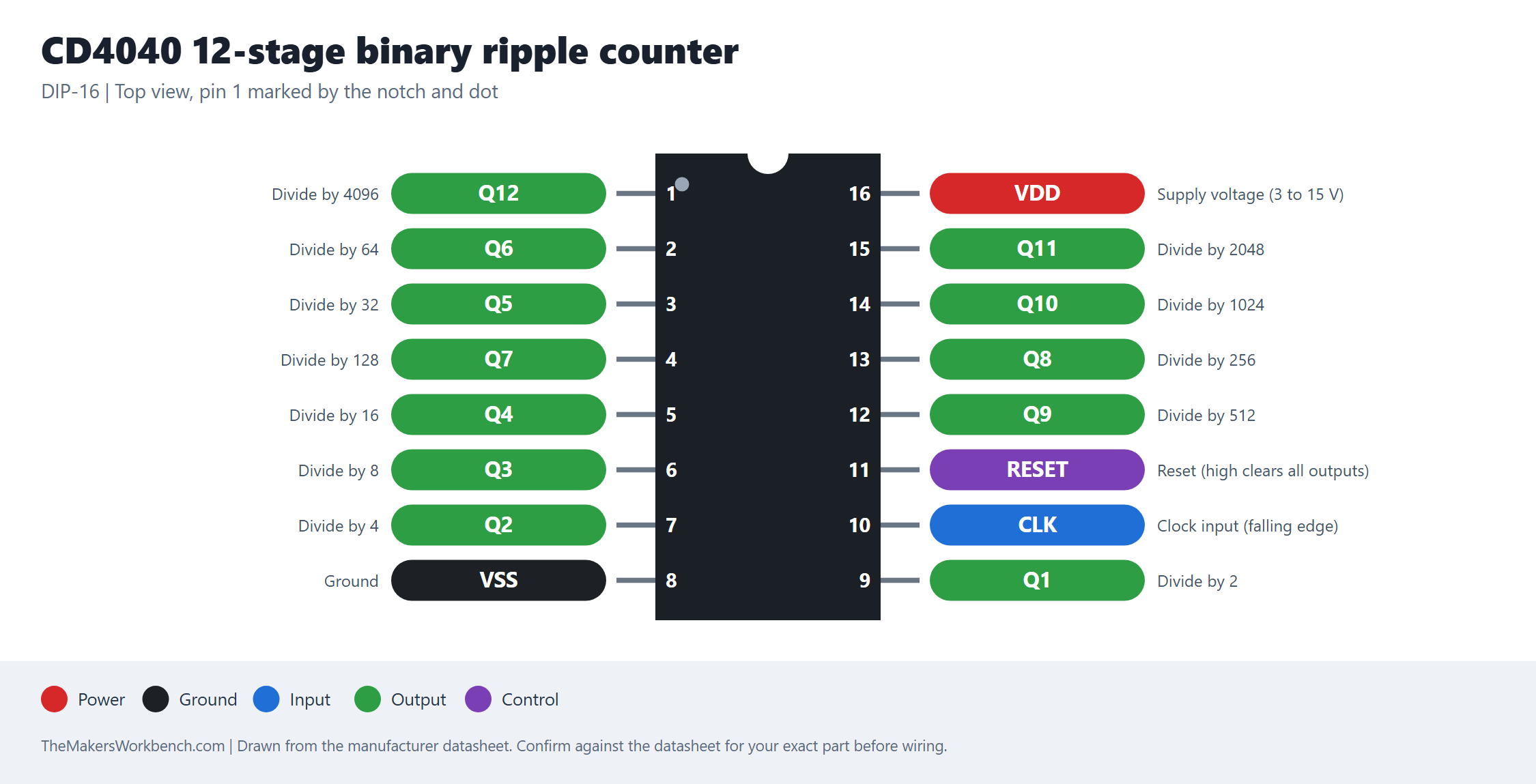

CD4040 12-stage binary ripple counter pinout
← All pinouts · Logic ICs
Click the image to open it full size.
Notes
Output Qn divides the clock frequency by 2 to the power n.
