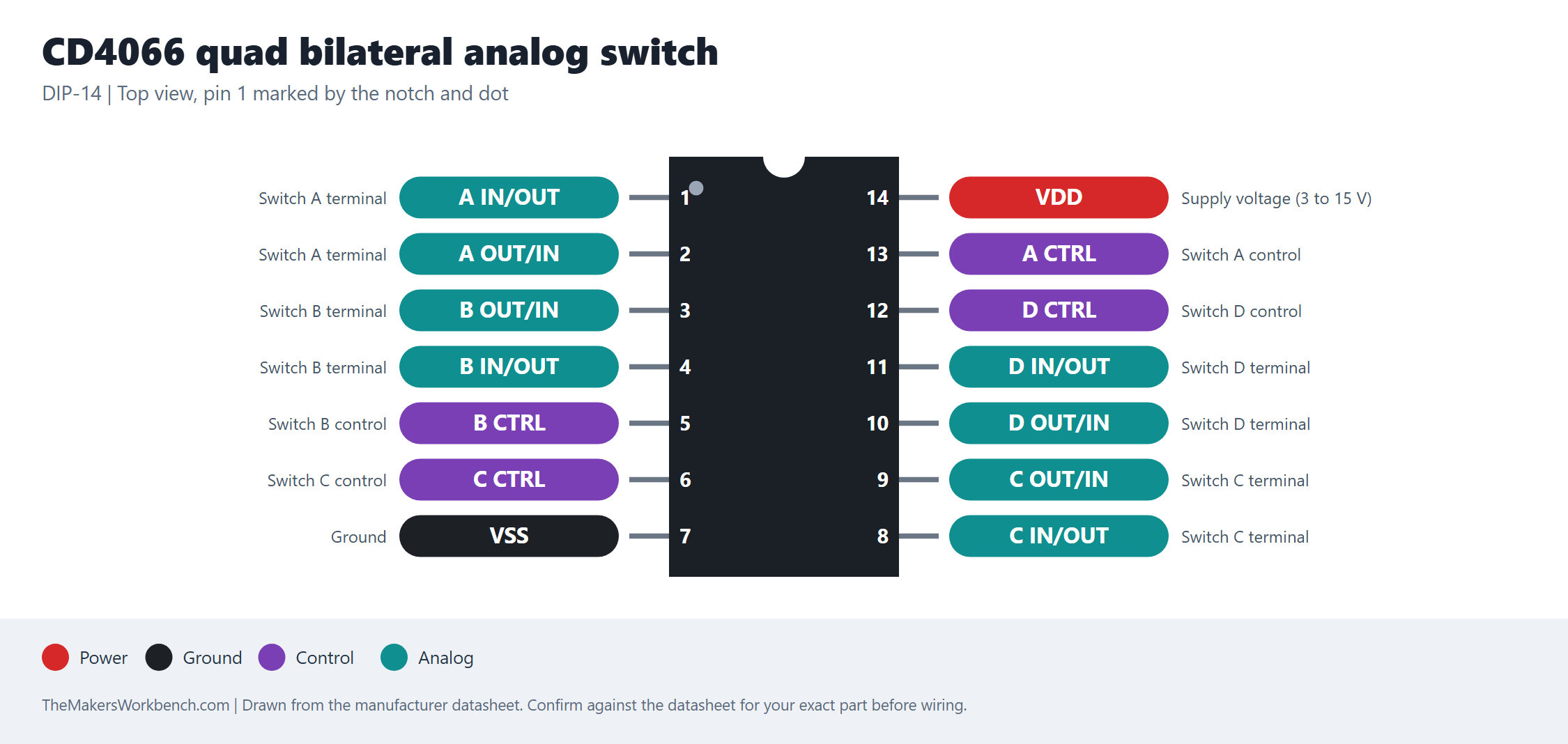

CD4066 quad bilateral analog switch pinout
← All pinouts · Logic ICs
Click the image to open it full size.
Notes
A control input high closes its switch. The switch passes signals in both directions.
CD4066 quad bilateral analog switch
