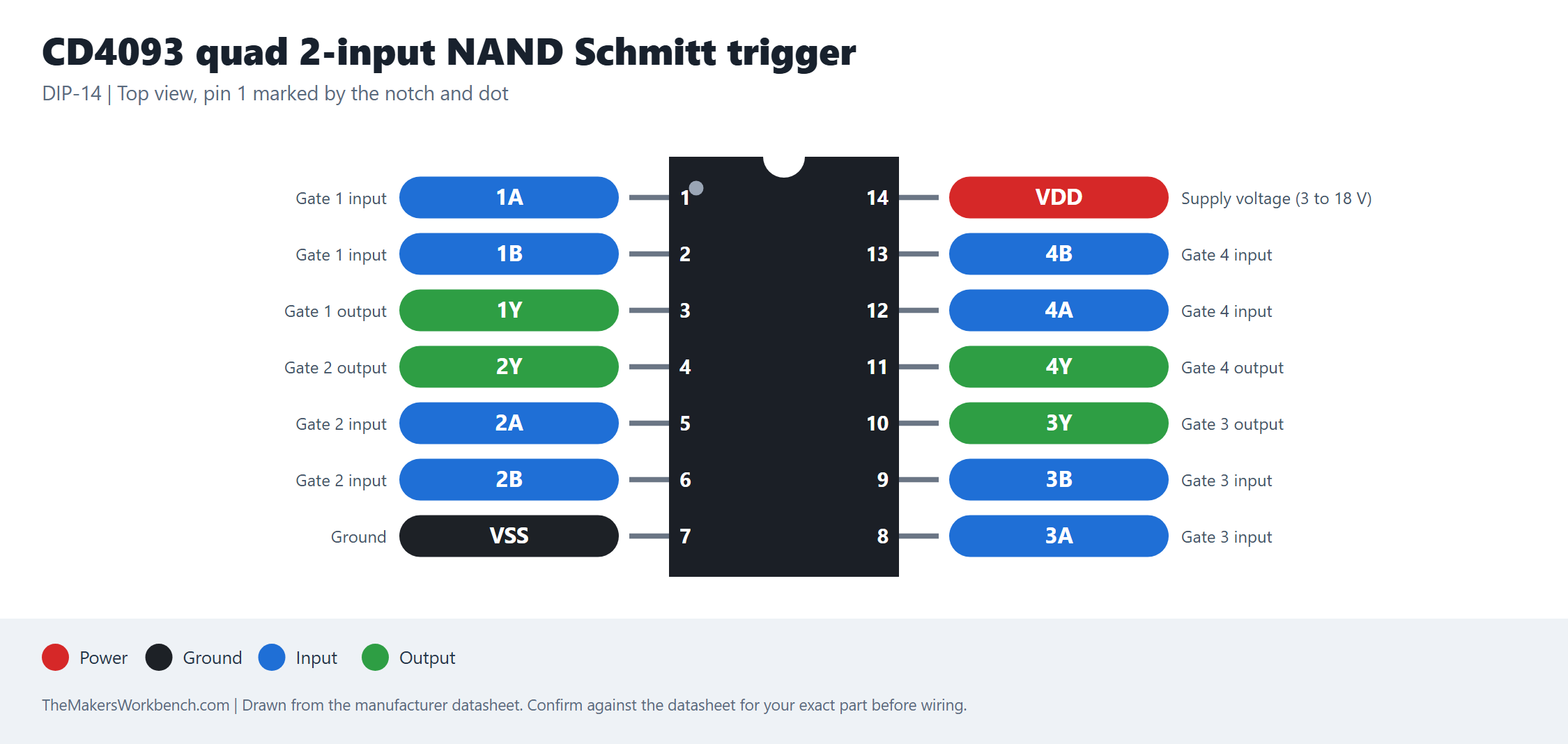

CD4093 quad 2-input NAND Schmitt trigger pinout
← All pinouts · Logic ICs
Click the image to open it full size.
Notes
The plain CD4011 NAND gate has the same pinout. The 4093 adds Schmitt-trigger inputs.
CD4093 quad 2-input NAND Schmitt trigger
