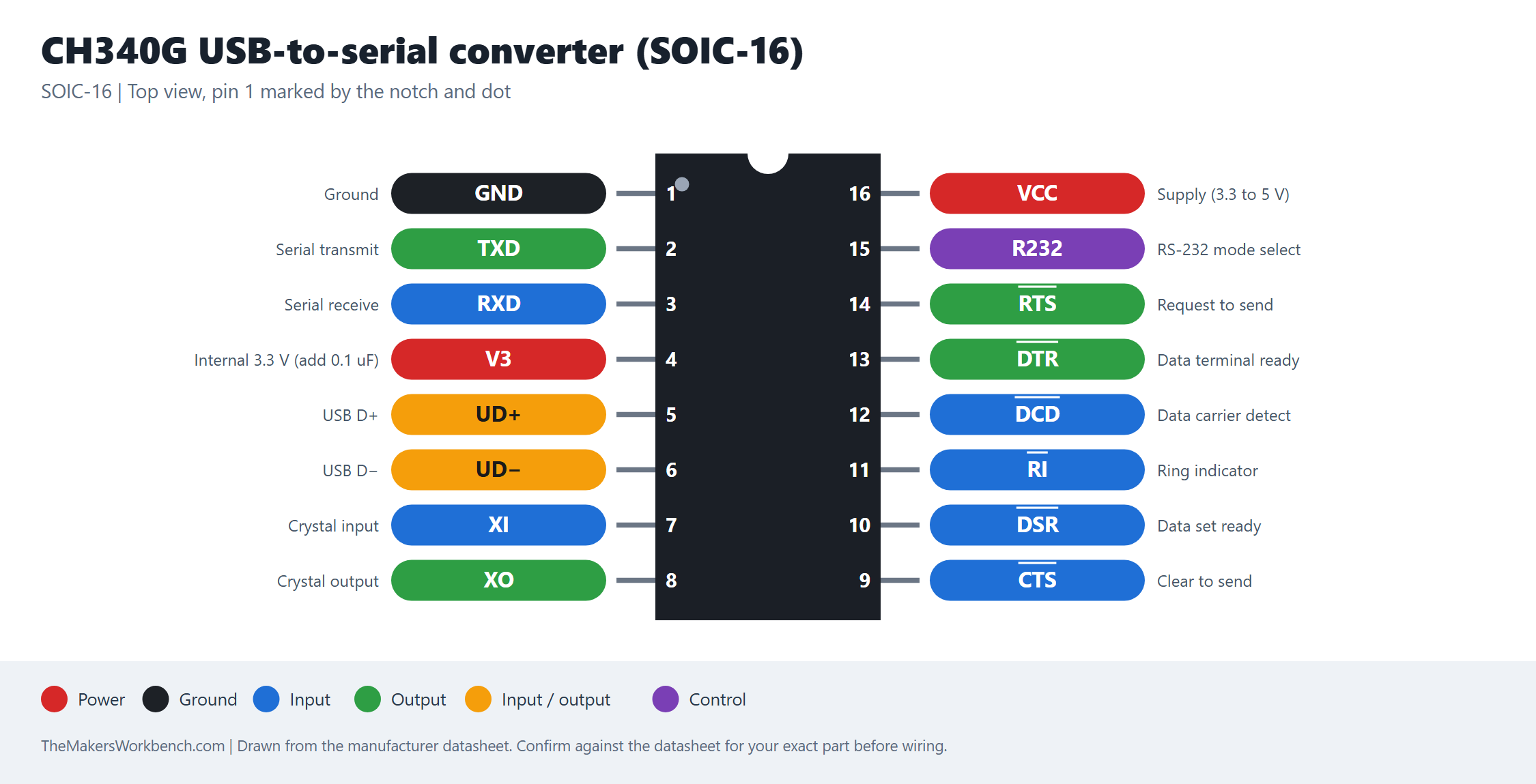

CH340G USB-to-serial converter (SOIC-16) pinout
← All pinouts · USB-UART and interface
Click the image to open it full size.
Notes
The CH340G needs a 12 MHz crystal. The CH340C has the crystal built in, and its pins 7 and 8 are different. The DTR pin is used to reset Arduino boards for upload.
