ESP32-DevKitC V4

ESP32-DevKitC V4 pinout

← All pinouts · Boards

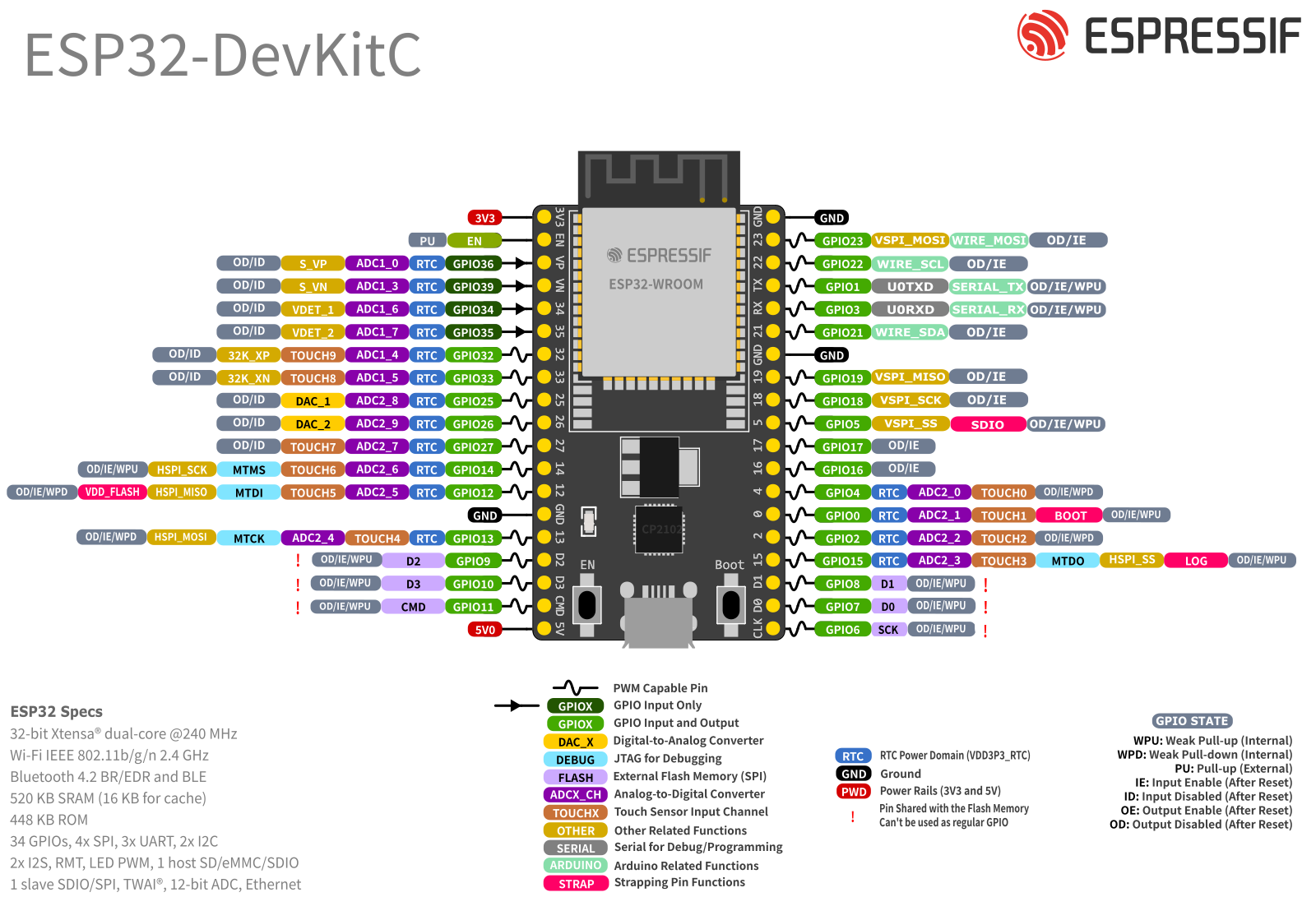

ESP32-DevKitC V4 pinout diagram

Click the image to open it full size.

Notes

Espressif's reference ESP32 development board. Many low-cost "ESP32 DevKit" boards copy this layout, but pin order and USB chip can differ, so compare your board with the diagram. GPIO34 to GPIO39 are input-only. GPIO6 to GPIO11 are used by the flash and must not be used.
