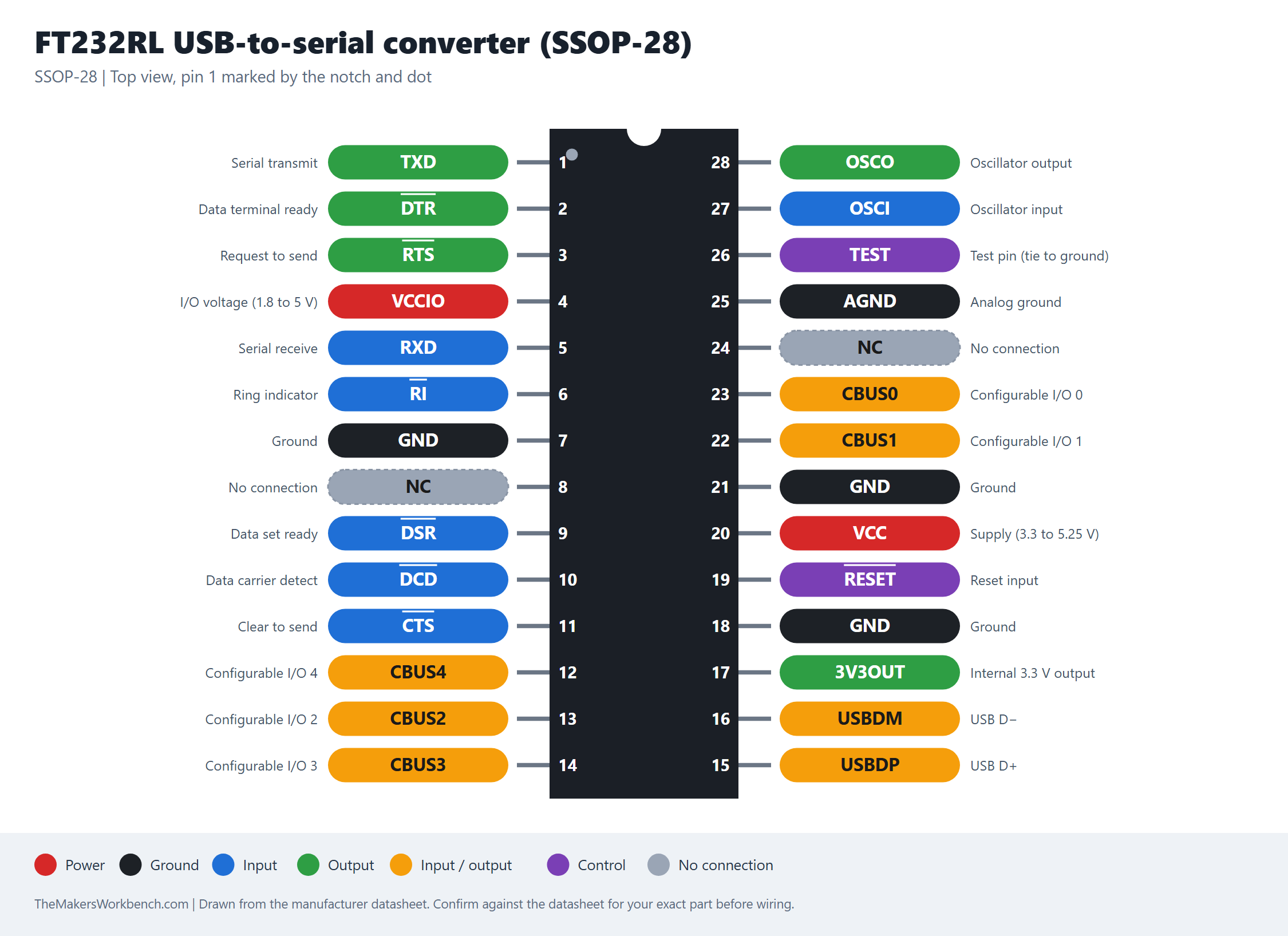

FT232RL USB-to-serial converter (SSOP-28) pinout
← All pinouts · USB-UART and interface
Click the image to open it full size.
Notes
Has an internal oscillator, so no crystal is needed. The CBUS pins can be set to drive LEDs or give a clock output.
