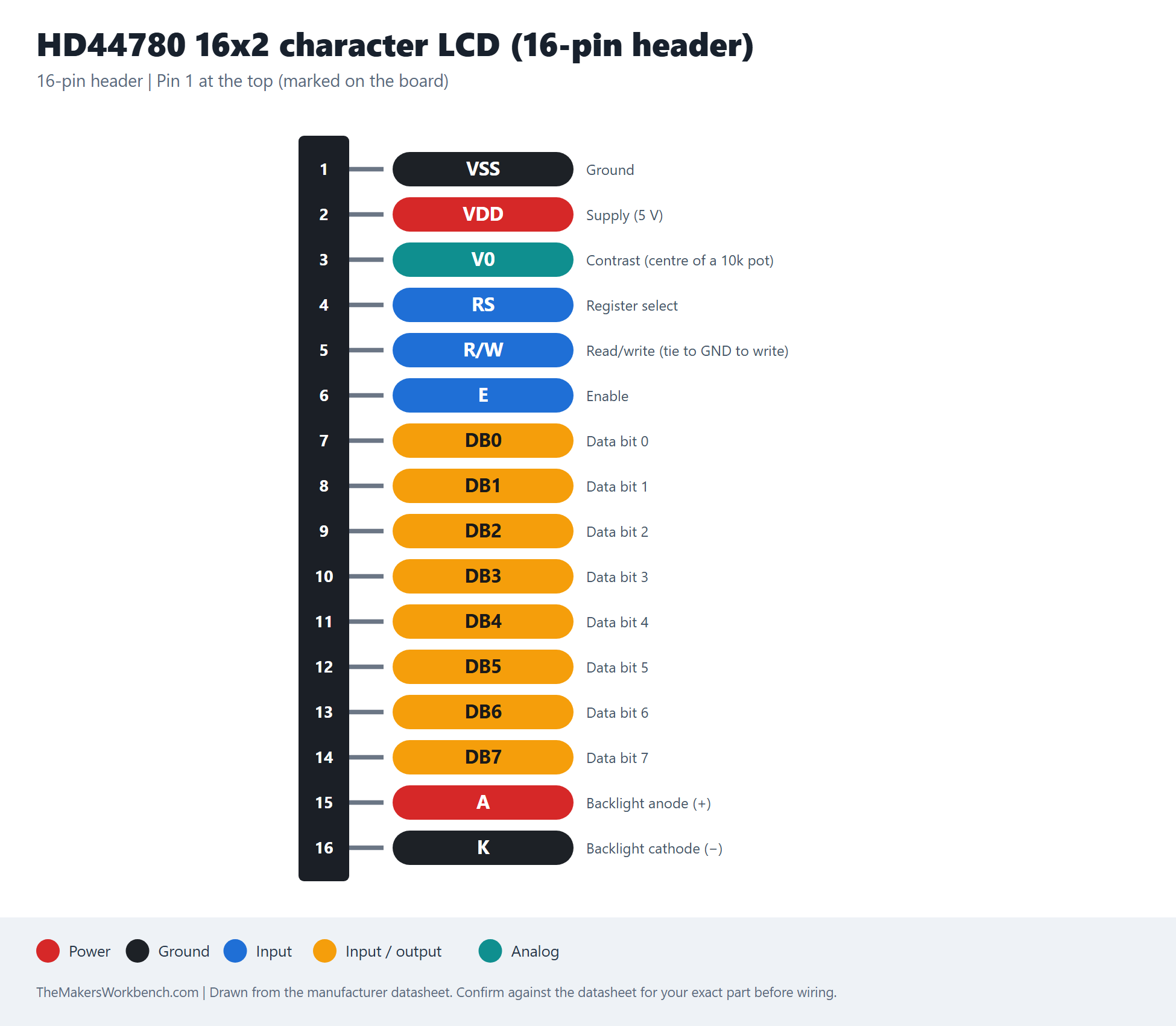

HD44780 16x2 character LCD (16-pin header) pinout
← All pinouts · Displays and drivers
Click the image to open it full size.
Notes
In 4-bit mode only D4 to D7 are used. Most I2C backpacks drive pins RS, E, and D4 to D7 through a PCF8574.
