IRLZ44N logic-level N-channel MOSFET (TO-220)

IRLZ44N logic-level N-channel MOSFET (TO-220) pinout

← All pinouts · Transistors and MOSFETs

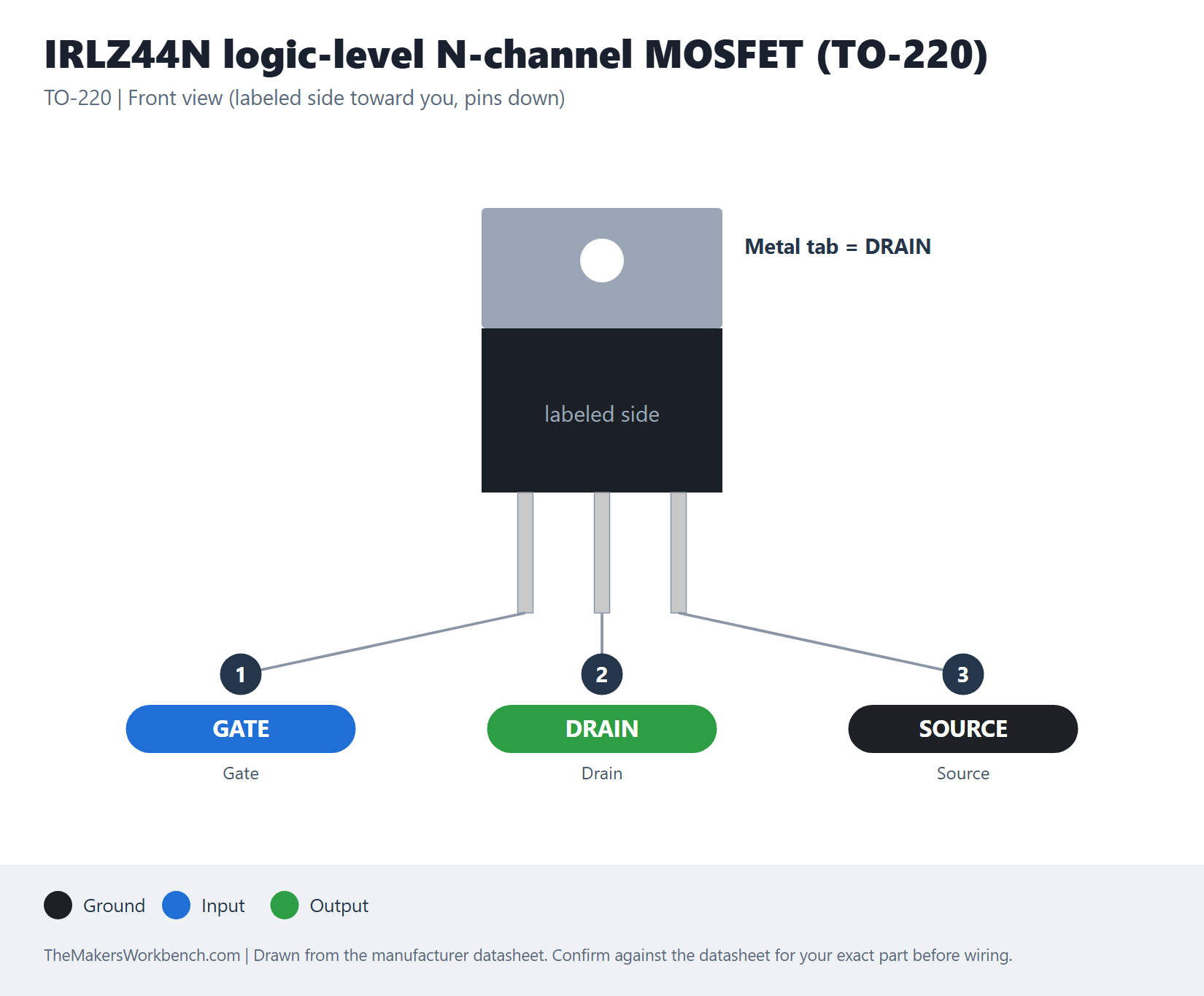

IRLZ44N logic-level N-channel MOSFET (TO-220) pinout diagram

Click the image to open it full size.

Notes

Logic level: it turns on fully with 5 V on the gate, and mostly with 3.3 V. The tab is the DRAIN.
