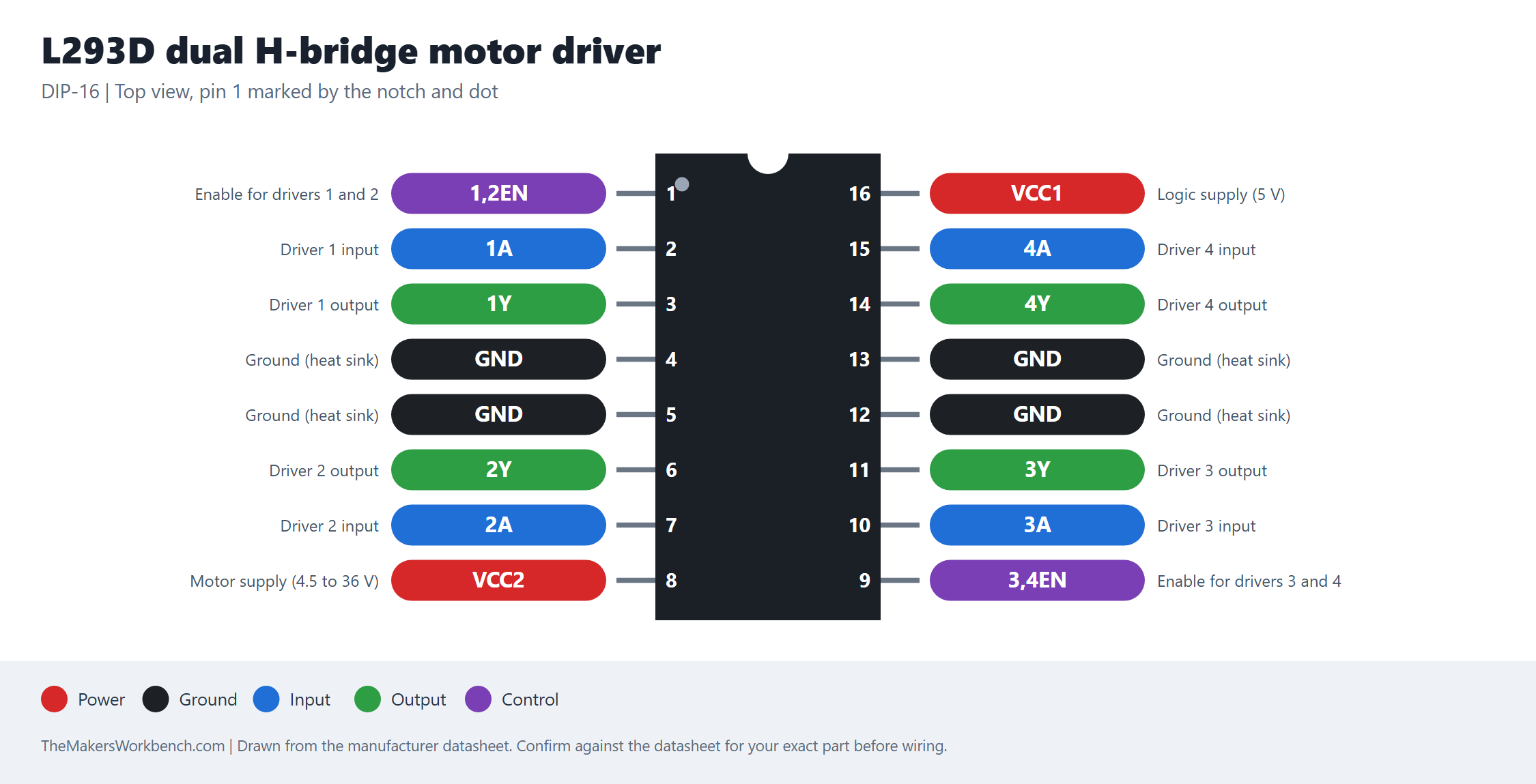

L293D dual H-bridge motor driver pinout
← All pinouts · Motor drivers
Notes
Drives two DC motors at up to 600 mA each, with built-in flyback diodes. Pins 4, 5, 12, and 13 are ground and also the heat sink.
