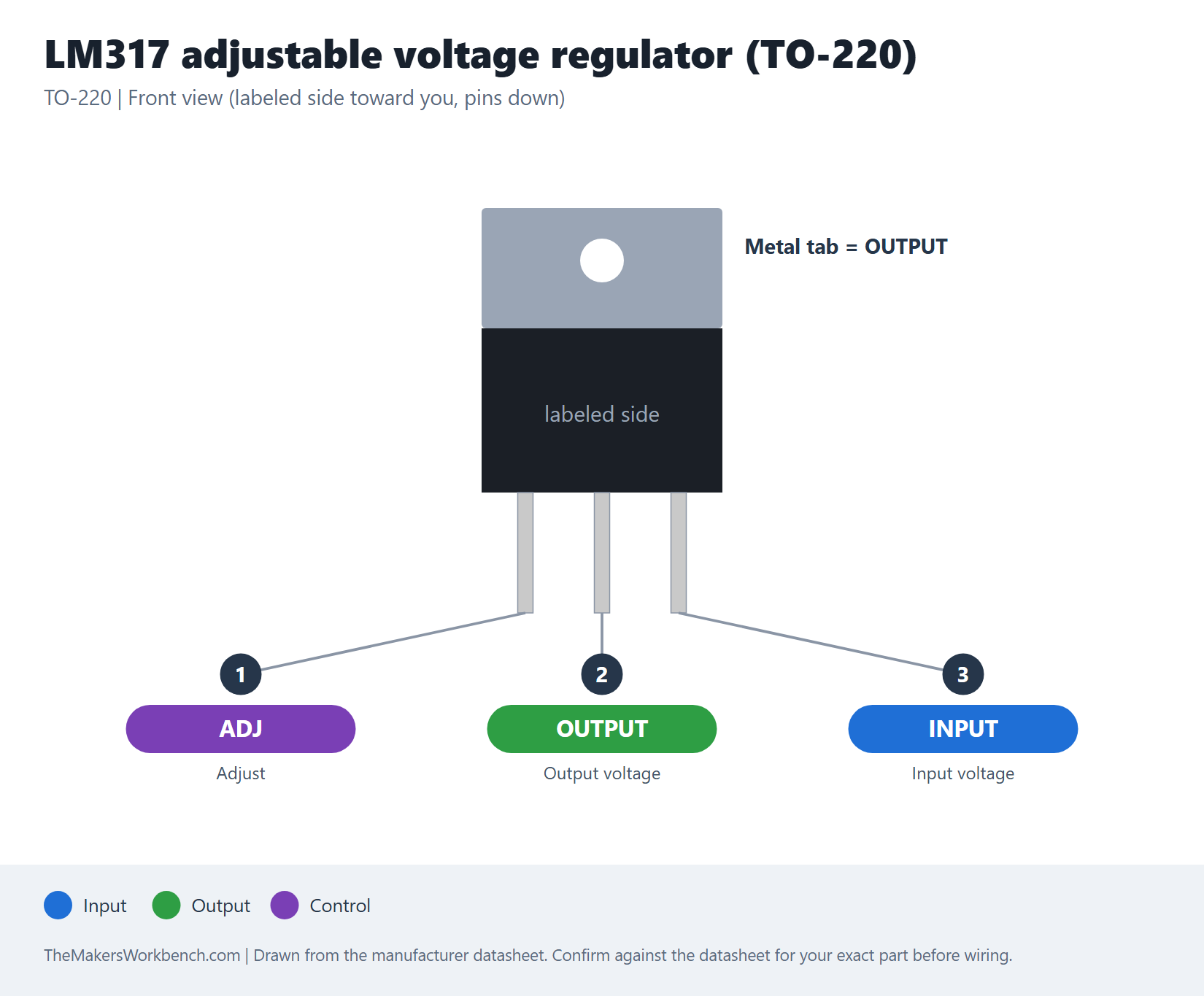

LM317 adjustable voltage regulator (TO-220) pinout
← All pinouts · Voltage regulators
Click the image to open it full size.
Notes
The metal tab is the OUTPUT, so do not let it touch ground on a shared heatsink. Output voltage is 1.25 V times (1 + R2 over R1).
