LM324 quad op-amp pinout
← All pinouts · Analog ICs
Click the image to open it full size.
Notes

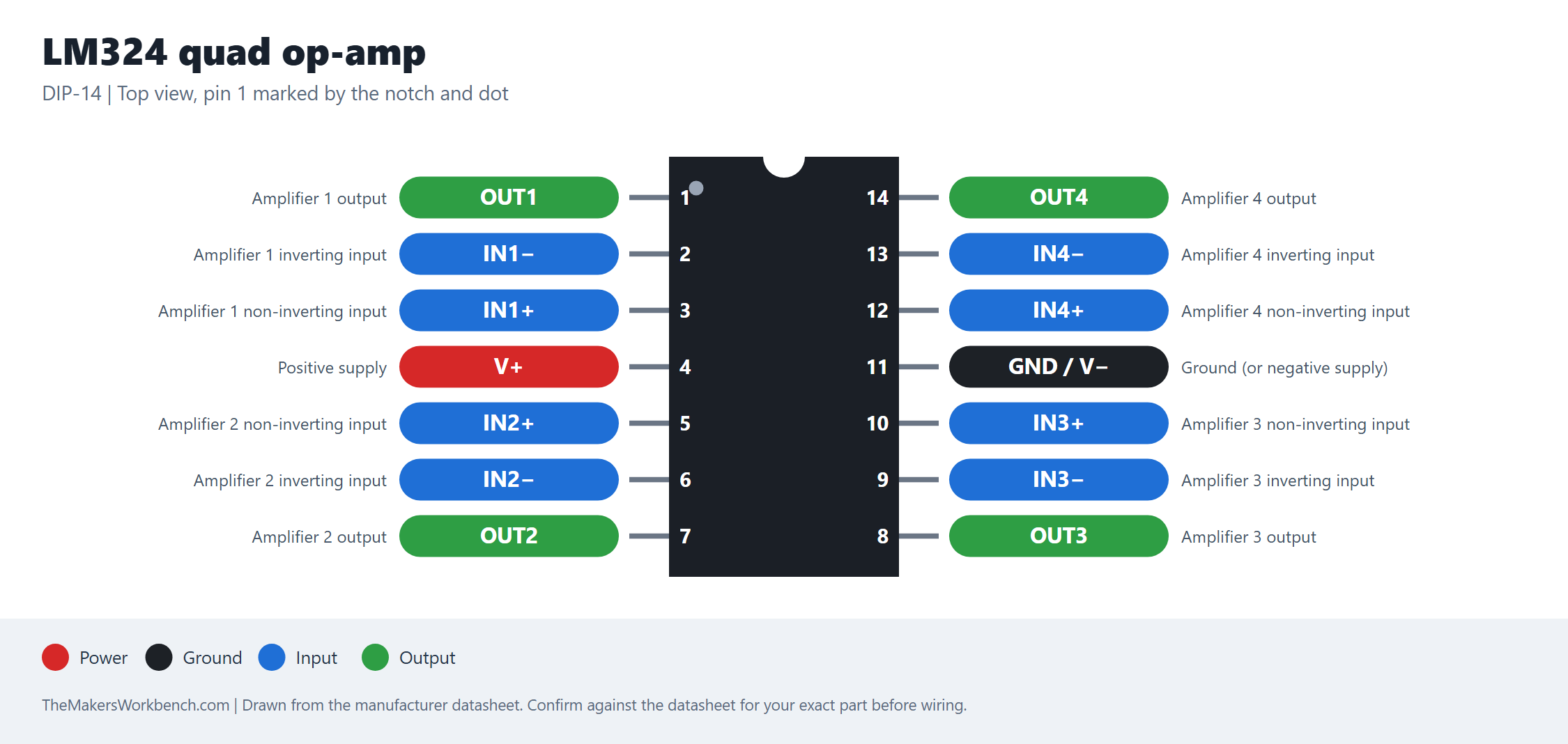

Four LM358-style amplifiers in one package. Note that the supply pins are 4 and 11, not 4 and 8.
LM324 quad op-amp
← All pinouts · Analog ICs
Click the image to open it full size.
Four LM358-style amplifiers in one package. Note that the supply pins are 4 and 11, not 4 and 8.
