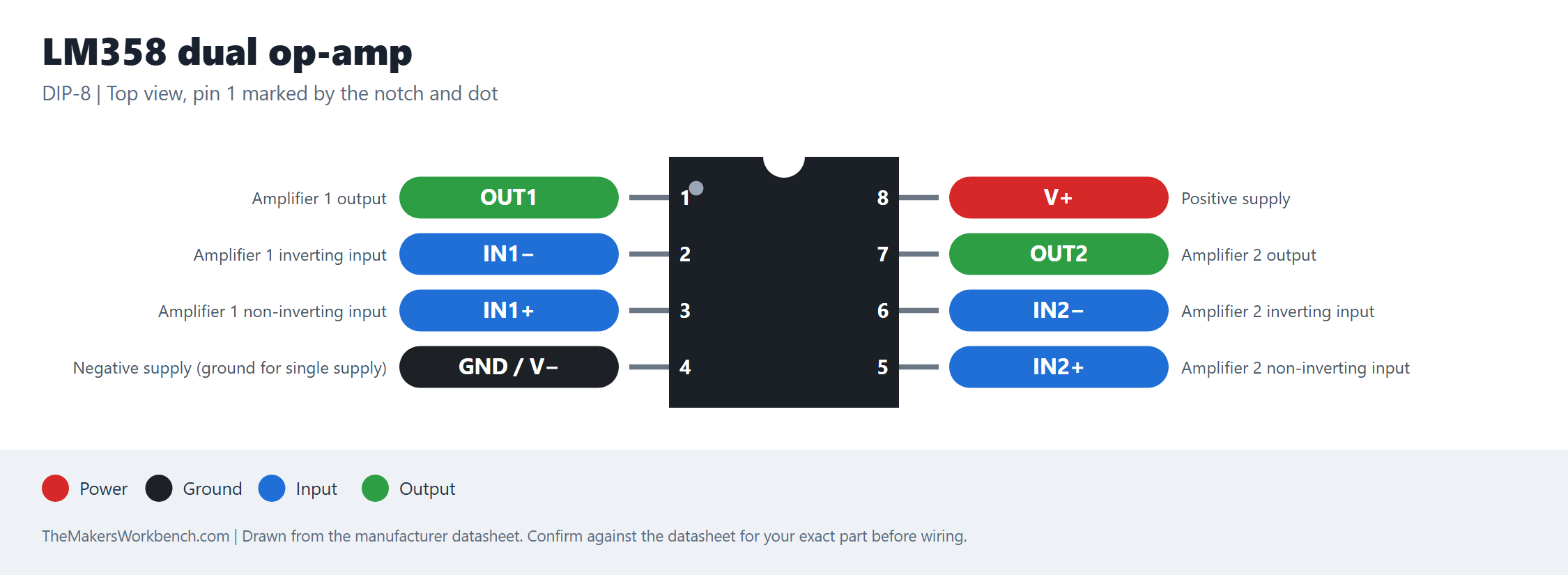

LM358 dual op-amp pinout
← All pinouts · Analog ICs
Click the image to open it full size.
Notes
Works from a single supply (3 to 32 V) and its output can swing close to ground. A common choice for 5 V circuits.
