LM386 audio power amplifier pinout
← All pinouts · Analog ICs
Click the image to open it full size.
Notes

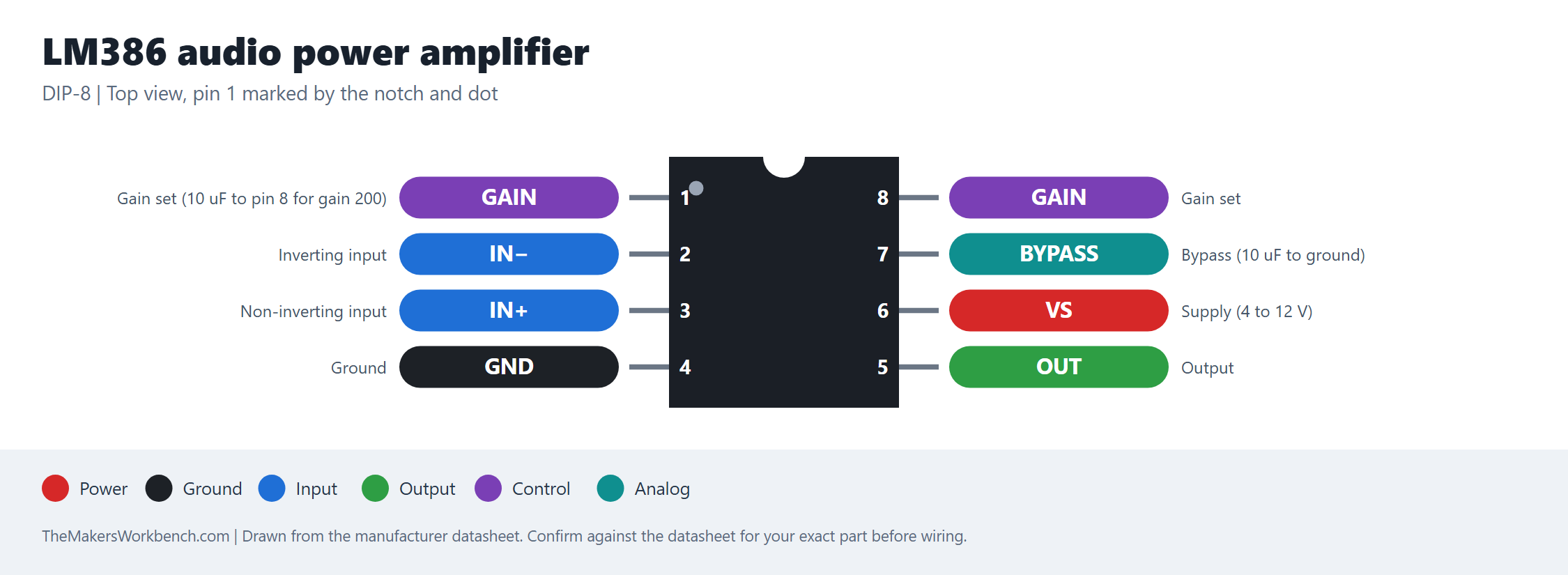

Gain is 20 with pins 1 and 8 open, and 200 with a 10 uF capacitor across them.
LM386 audio power amplifier
← All pinouts · Analog ICs
Click the image to open it full size.
Gain is 20 with pins 1 and 8 open, and 200 with a 10 uF capacitor across them.
