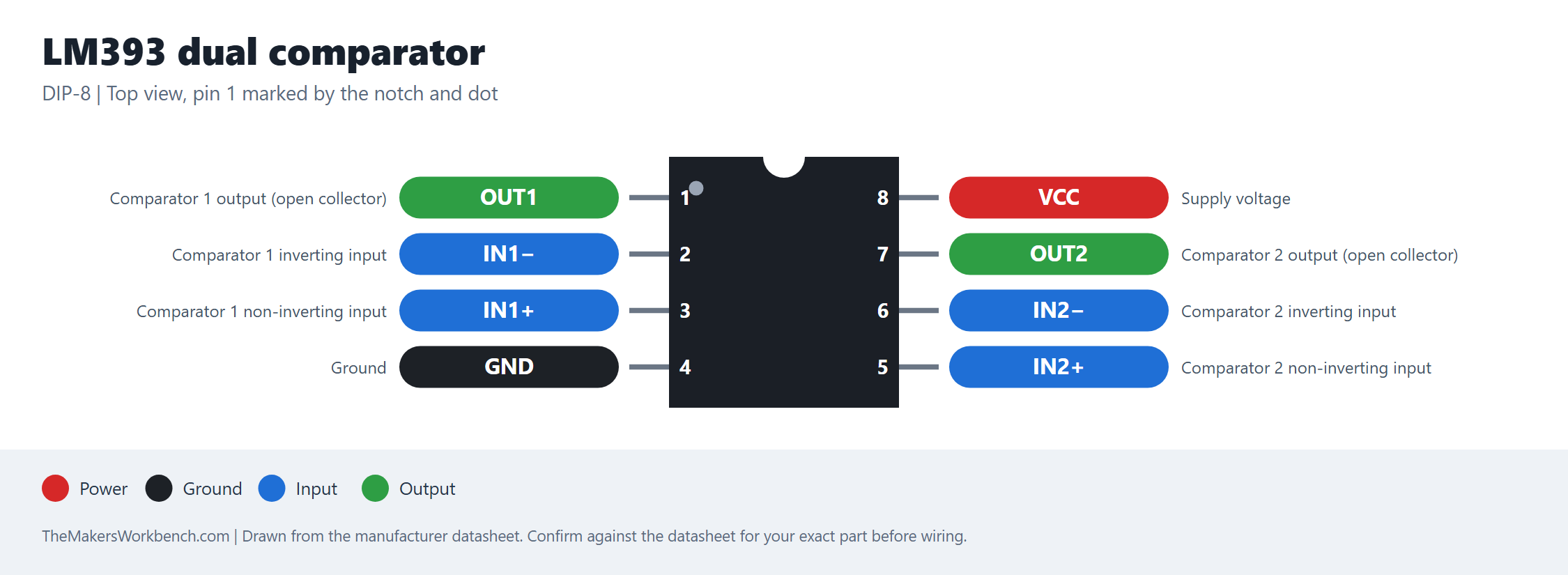

LM393 dual comparator pinout
← All pinouts · Analog ICs
Click the image to open it full size.
Notes
Outputs are open collector, so each needs a pull-up resistor.
LM393 dual comparator
← All pinouts · Analog ICs
Click the image to open it full size.
Outputs are open collector, so each needs a pull-up resistor.
