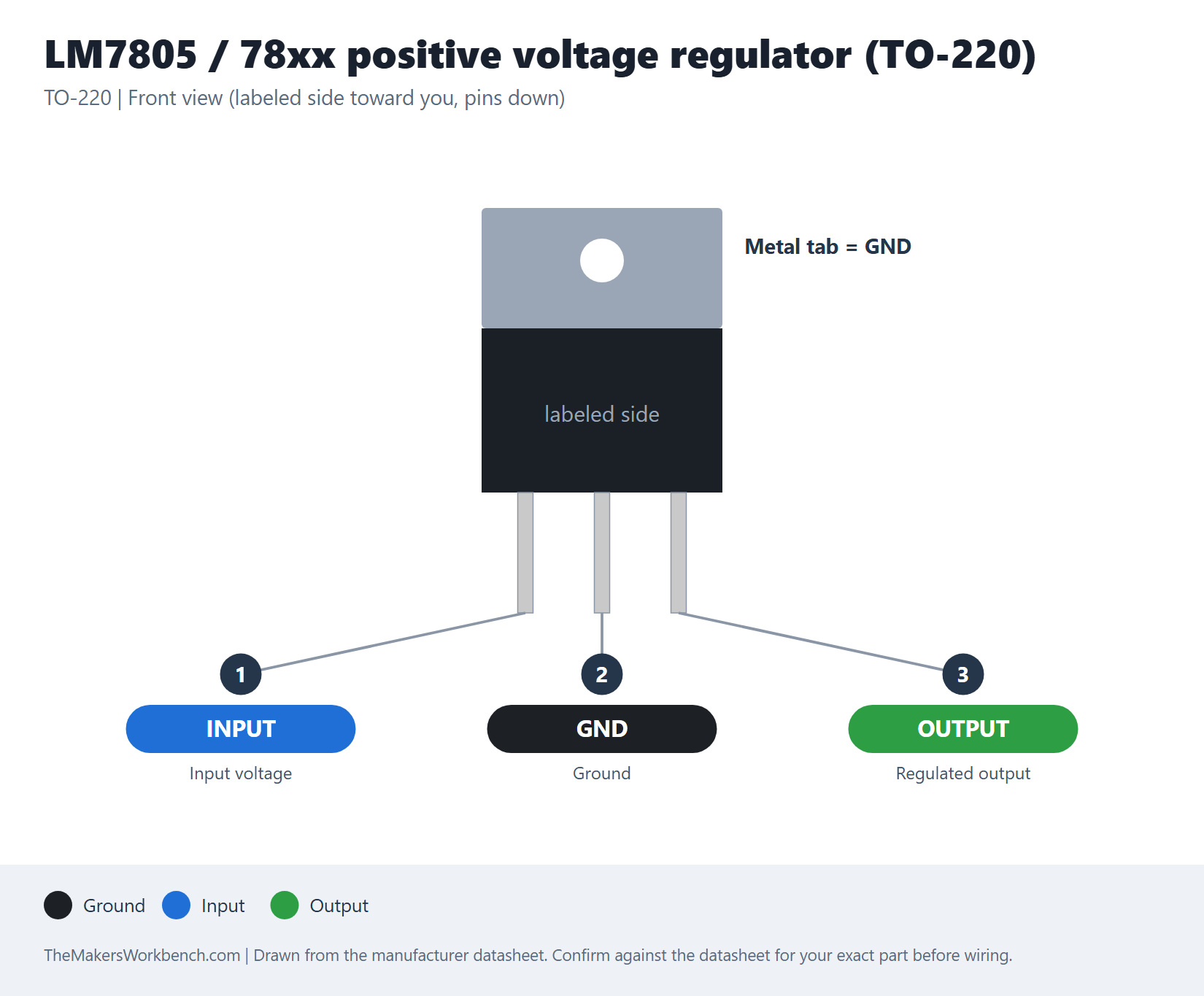

LM7805 / 78xx positive voltage regulator (TO-220) pinout
← All pinouts · Voltage regulators
Click the image to open it full size.
Notes
The metal tab is connected to ground. The 7809, 7812, and other 78xx parts have the same pinout. The input must be at least about 2 V above the output.
