LM7905 / 79xx negative voltage regulator (TO-220)

LM7905 / 79xx negative voltage regulator (TO-220) pinout

← All pinouts · Voltage regulators

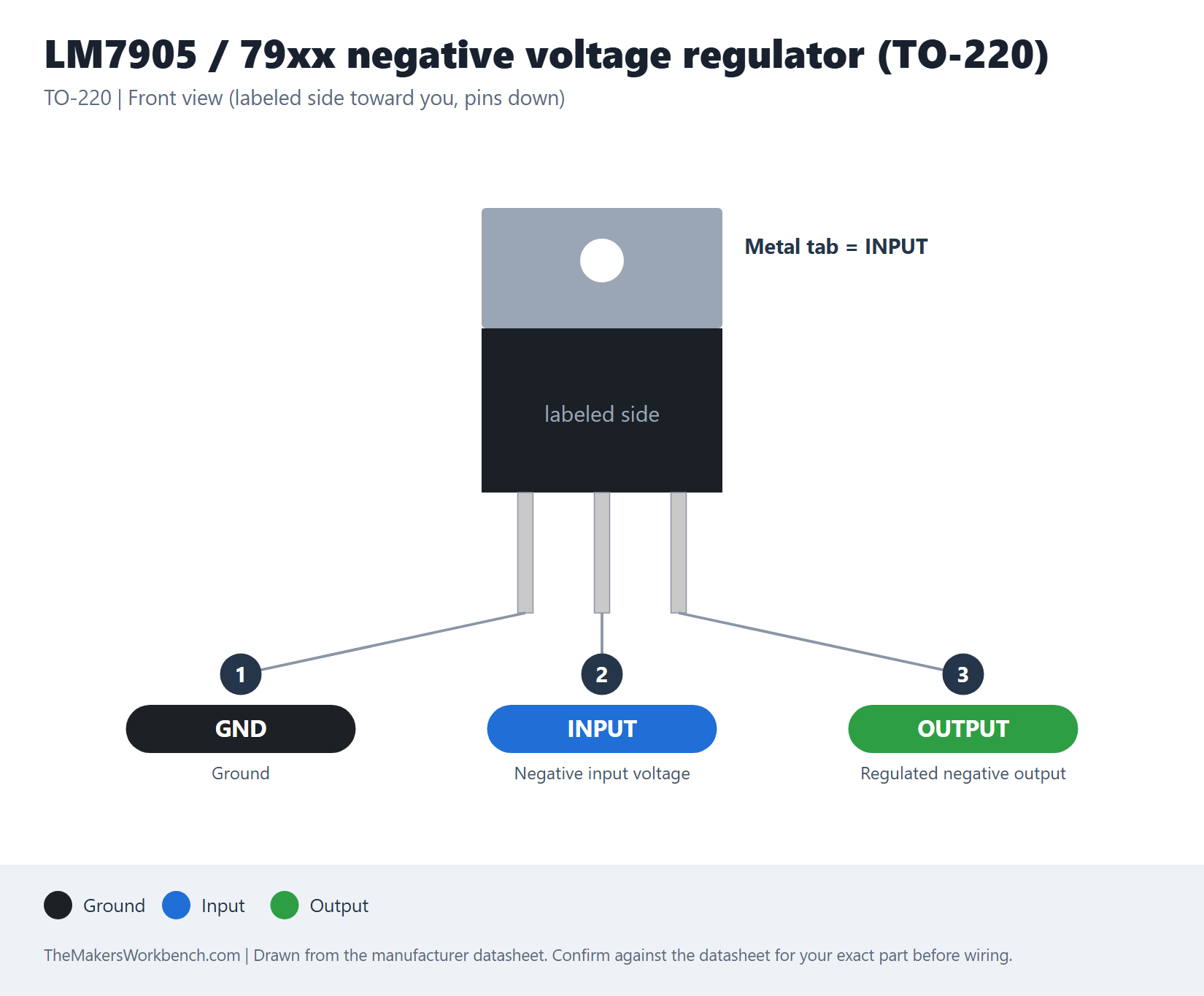

LM7905 / 79xx negative voltage regulator (TO-220) pinout diagram

Click the image to open it full size.

Notes

Different from the 78xx: pin 1 is ground. The metal tab is connected to the input.
