MAX232 RS-232 line driver/receiver pinout
← All pinouts · USB-UART and interface
Click the image to open it full size.
Notes
Needs four 1 uF capacitors for its charge pumps. Converts 5 V logic to and from RS-232 levels.

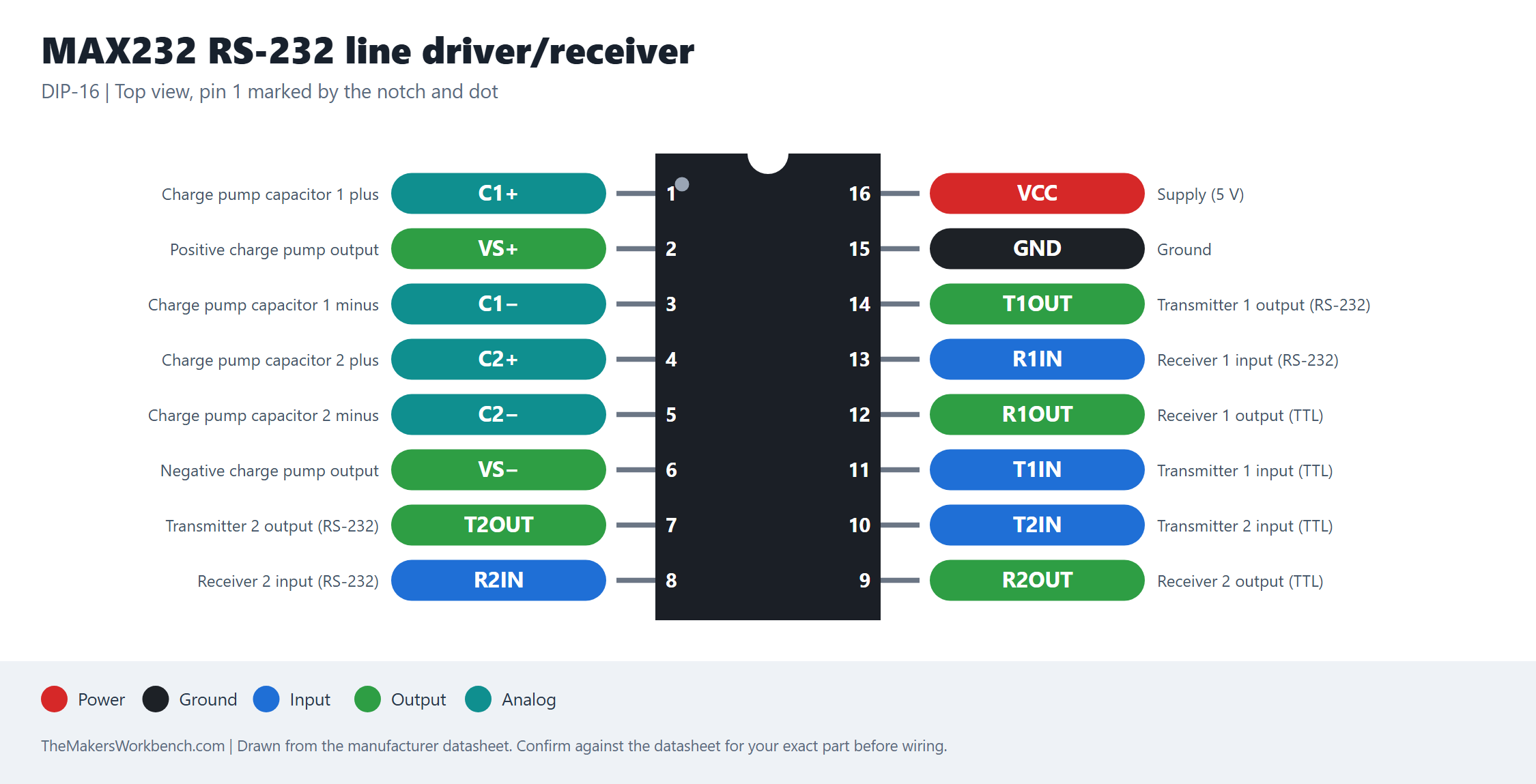

MAX232 RS-232 line driver/receiver
