MAX485 RS-485 transceiver

MAX485 RS-485 transceiver pinout

← All pinouts · USB-UART and interface

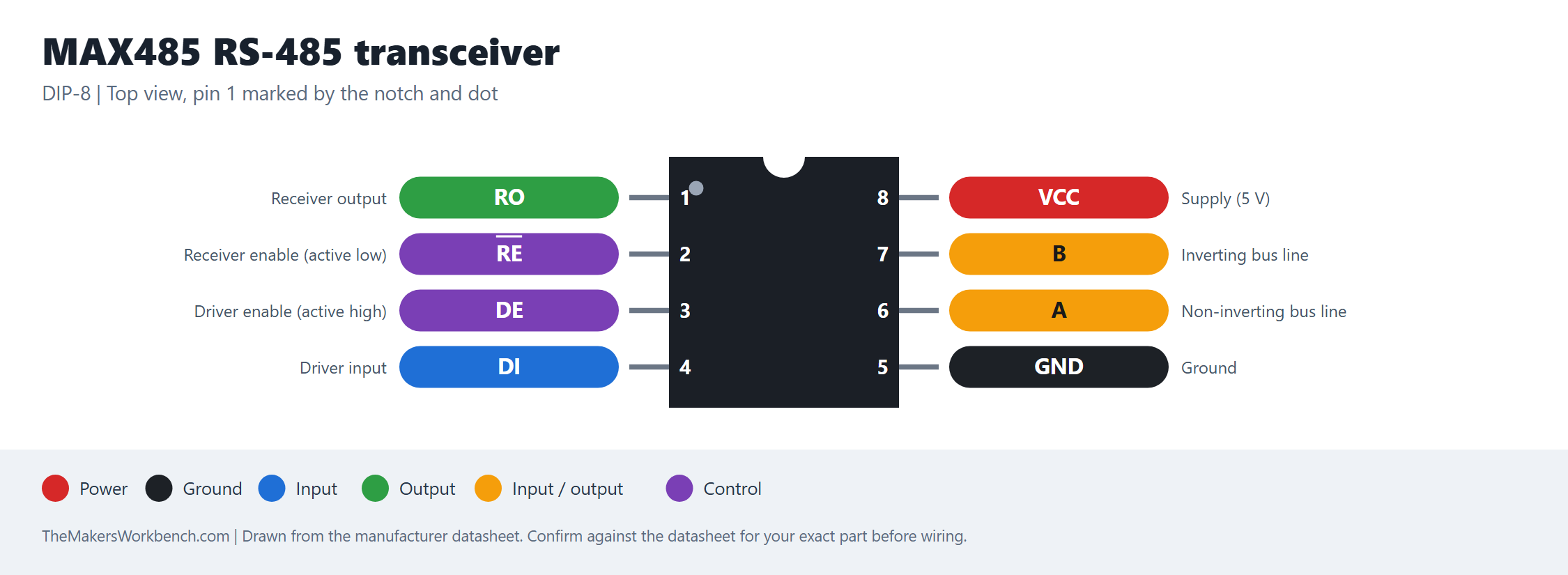

MAX485 RS-485 transceiver pinout diagram

Click the image to open it full size.

Notes

Tie RE and DE together to switch between sending and receiving with one microcontroller pin.
