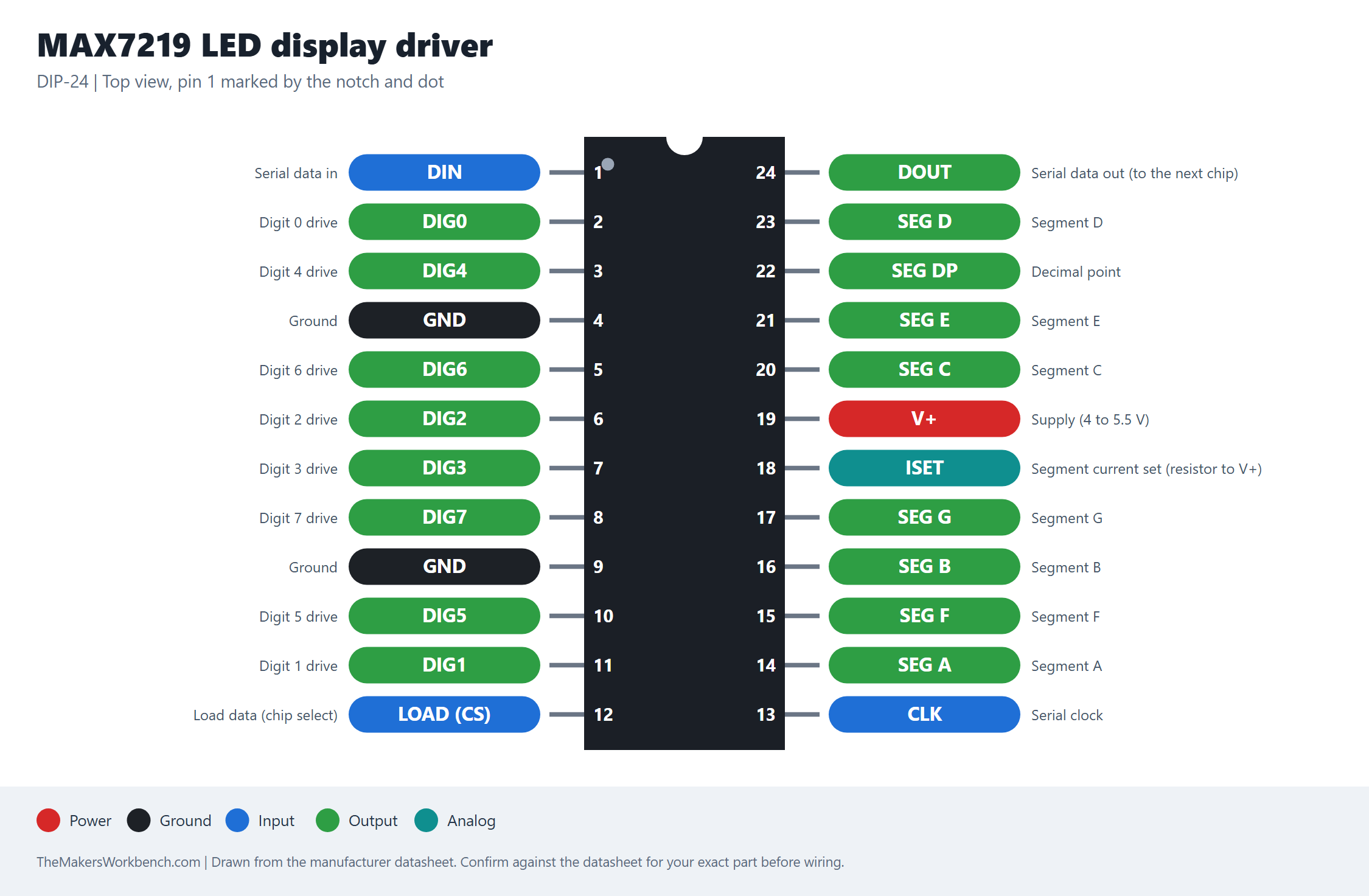

MAX7219 LED display driver pinout
← All pinouts · Displays and drivers
Click the image to open it full size.
Notes
Drives eight 7-segment digits or an 8x8 LED matrix over three wires. Chain chips by connecting DOUT to the next DIN.
