MCP3008 8-channel 10-bit SPI ADC

MCP3008 8-channel 10-bit SPI ADC pinout

← All pinouts · Analog ICs

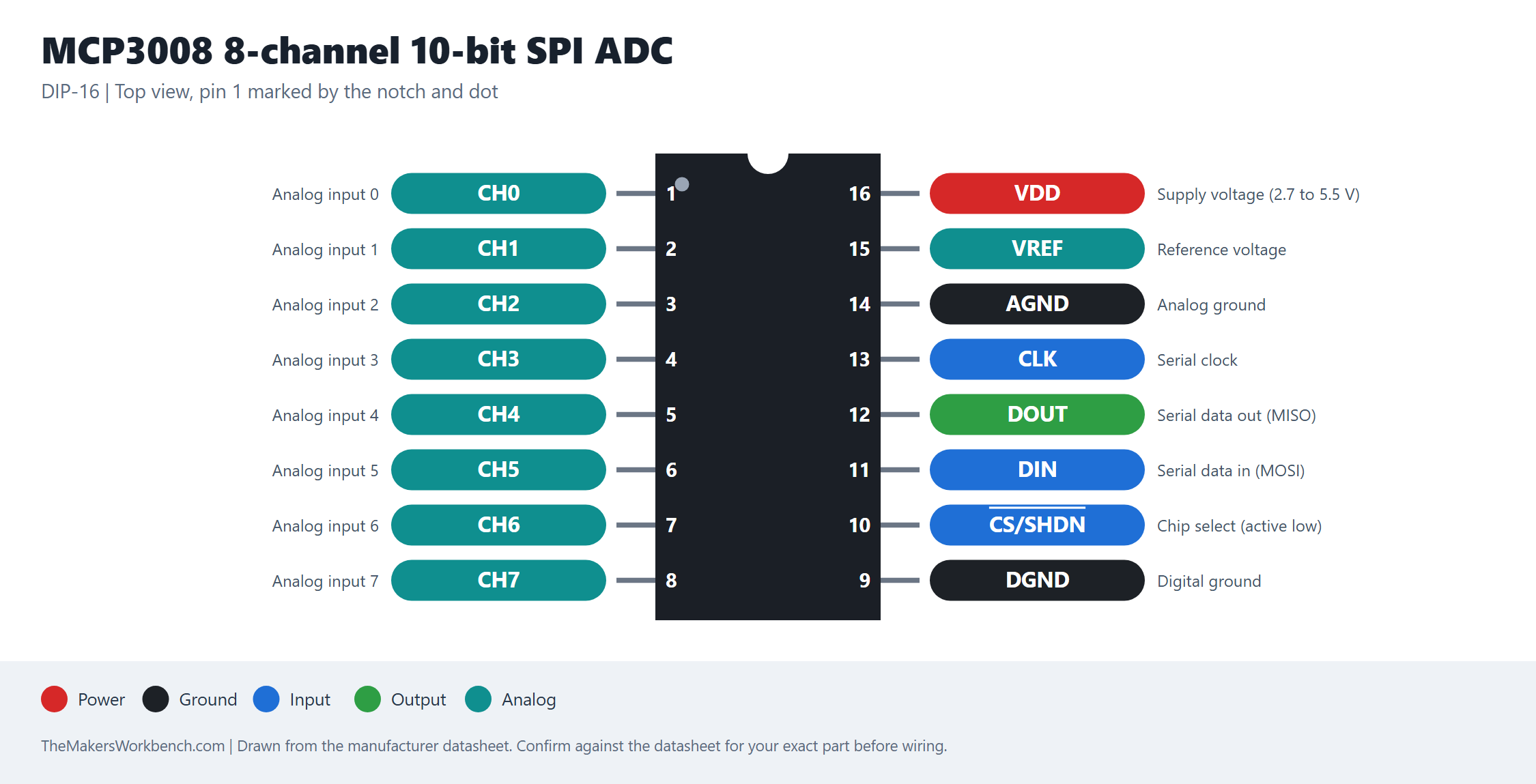

MCP3008 8-channel 10-bit SPI ADC pinout diagram

Click the image to open it full size.

Notes

A popular way to add analog inputs to a Raspberry Pi. The MCP3004 has four channels with the same pin order for the rest.
