NE555 timer pinout
← All pinouts · Analog ICs
Click the image to open it full size.
Notes

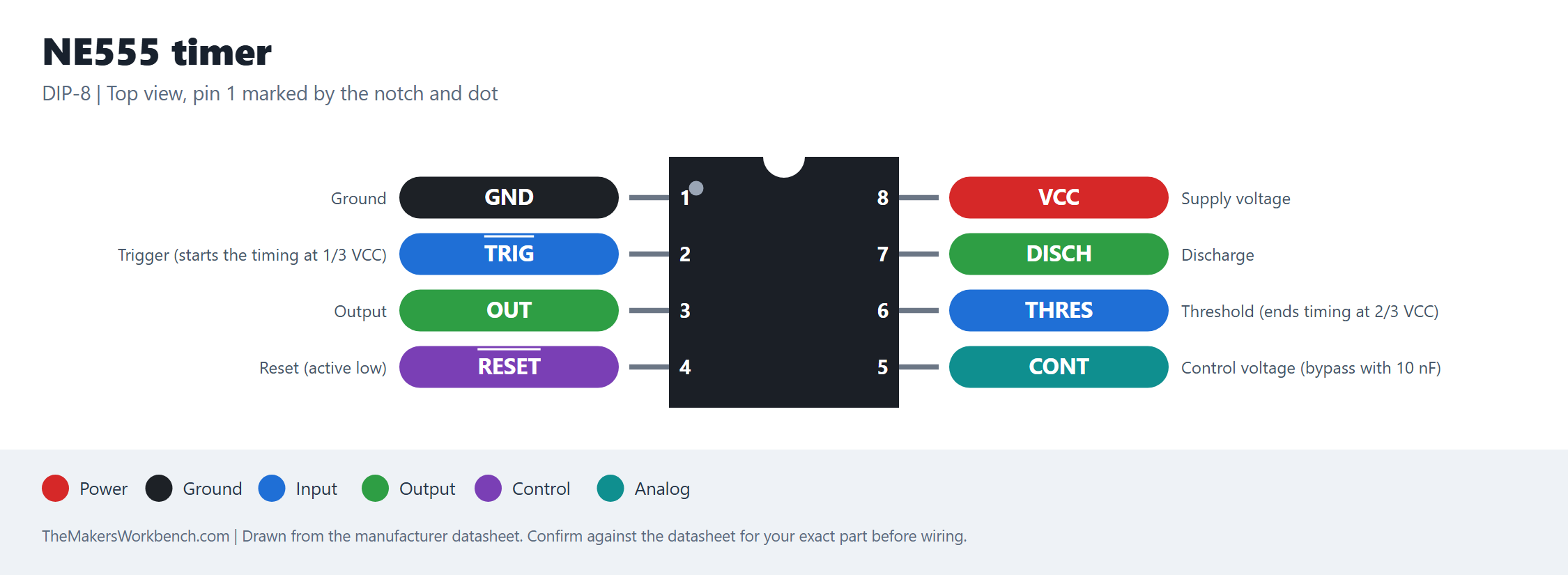

The 555 also exists as CMOS versions (7555, TLC555). Pinout is identical. Tie RESET to VCC when unused.
NE555 timer
← All pinouts · Analog ICs
Click the image to open it full size.
The 555 also exists as CMOS versions (7555, TLC555). Pinout is identical. Tie RESET to VCC when unused.
