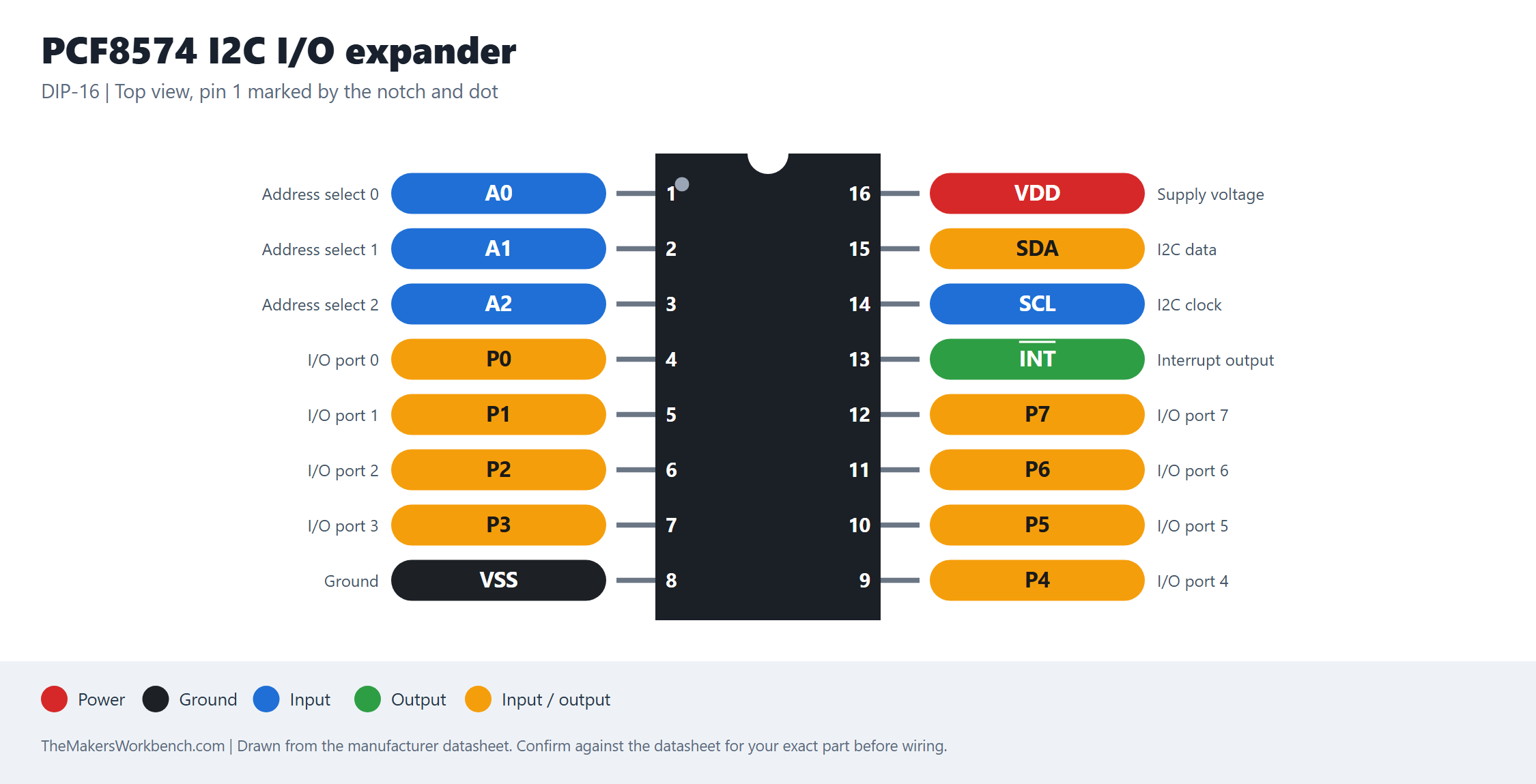

PCF8574 I2C I/O expander pinout
← All pinouts · Logic ICs
Click the image to open it full size.
Notes
The PCF8574 address is 0x20 to 0x27. The PCF8574A uses 0x38 to 0x3F. This chip is on most I2C LCD backpacks.
PCF8574 I2C I/O expander
