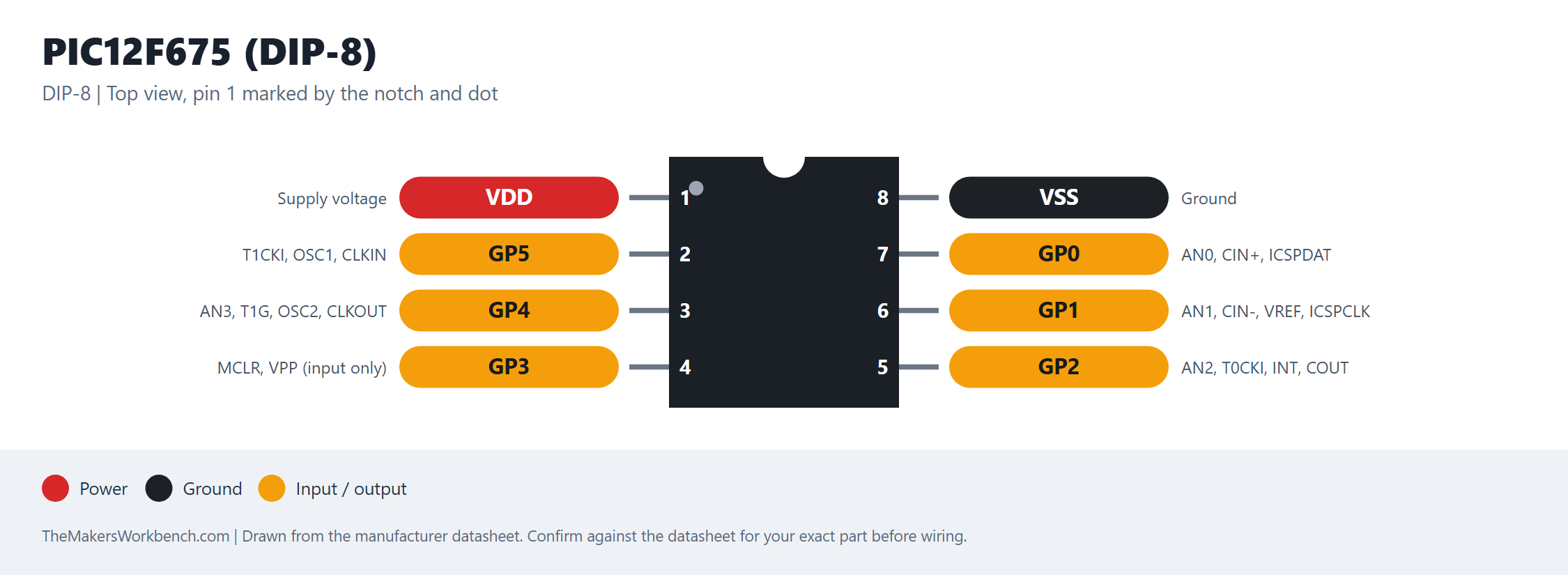

PIC12F675 (DIP-8) pinout
← All pinouts · Microcontroller chips
Notes
A small 8-pin PIC with a 10-bit ADC. GP3 is input-only and doubles as MCLR. The PIC12F629 has the same pinout without the ADC. Programming (ICSP) uses MCLR, VDD, VSS, PGD and PGC.
